Edge-lit LED Strip

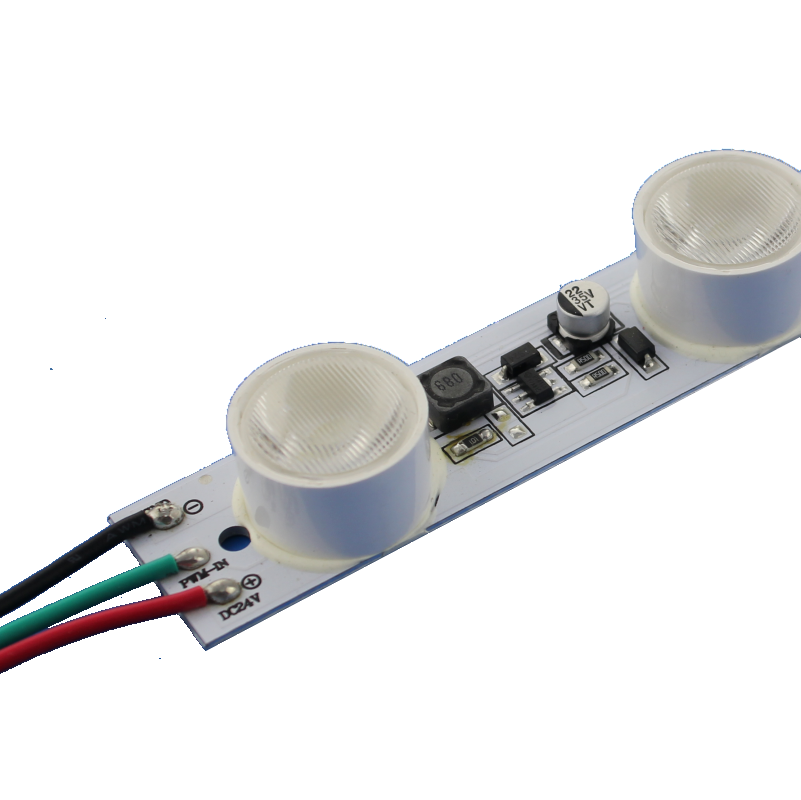

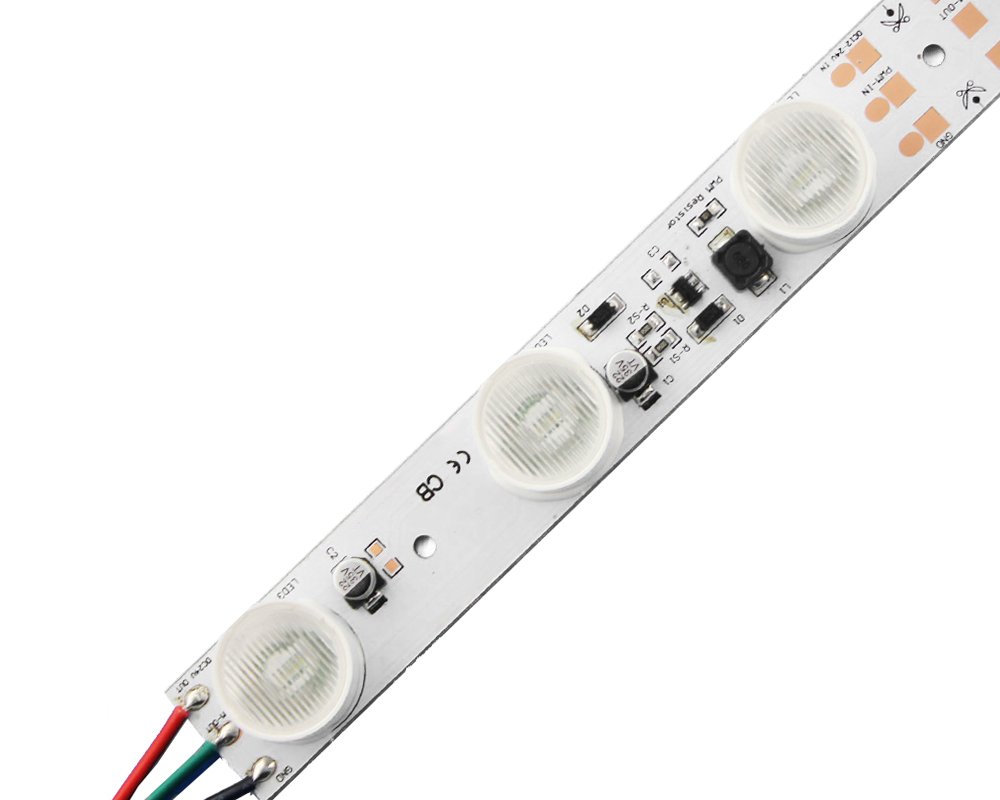

DC 24V, EPISTAR or CREE 3535 LED, 1-3 Watt/LED. This bracket lens edge lit LED strip is suitable for light box thickness 80mm-200mm of single face fabric frames and 140-300mm of double face fabric display.INQUIRE+High Power Edge Lit LED Strip
Features
* DC 24V high power LED strip, with Epistar or CREE SMD 3535 each LED running at 3W
* High power edge LED strip, but long service life and low failure rate with constant current constant voltage design
* This high power high lumen LED strip can be PWM signal dimmable without voltage drop to realize consistent brightness dimming, perfect for high demand SEG frame lightbox lighting
* 5 years warranty with CE RoHS UL
* Bracket lens diffused LED rigid light bar, edge lit LED module with lens, it is suitable for light box thickness 80mm-200mm of single face fabric frames and 140-300mm of double face fabric display
Applications
This edge lit LED strip with bracket lens is designed for standard SEG display stands without hot spots as perimeter LED of SEG frames.
SEG frame reference
>>>Double Sided SEG Fabric Frame(160mm)

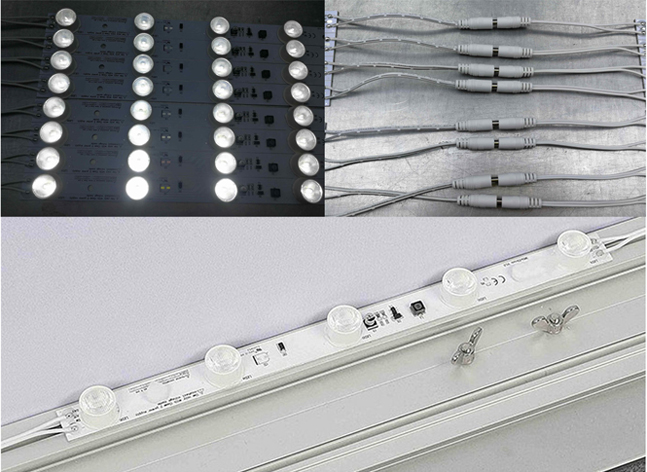

It is commonly used as SEG tension fabric lightbox edge lighting, Trade show stand display backlit, Event display edge lit backlight, Stretch fabric light box sign lights, Edge lit lighting, Perimeter LED lighting, Outdoor advertising billboard edge lights, etc.

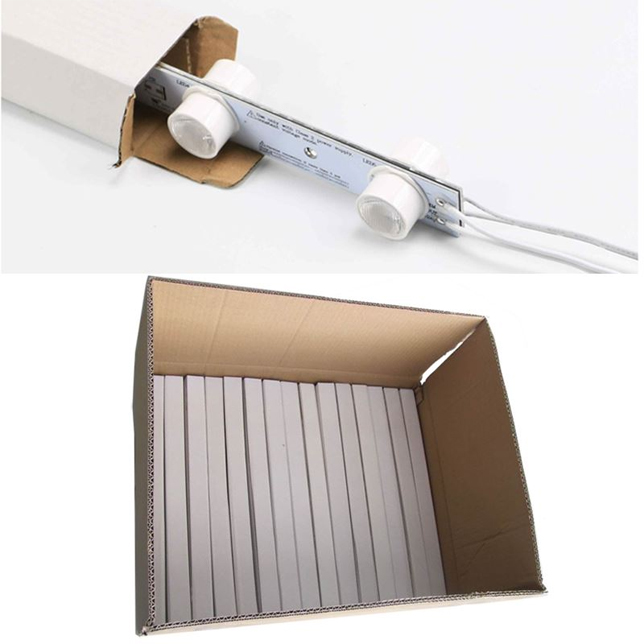

2pcs to be packed in a small white box and then put into master carton box
Standard 2 popular lengths of the high lumen LED strip edge lights (over 300lm per LED): 5 LED lights in 360mm long and 9 LED lights in 470mm long with 3 lights per 156mm to cut.
Specifications
Part Length
Input Voltage
Power/pc
Luminous Flux(Lux)
LED Type
Color
LED Qty/pc
Dimension(L*W*H)
Bean Angle
360mm
24V DC
15±10%
1600±10%
SMD 3535
W
5pcs
360*24*15mm
9*50°
470mm
24V DC
27±10%
2970±10%
SMD 3535
W
9pcs
470*24*15mm
9*50°

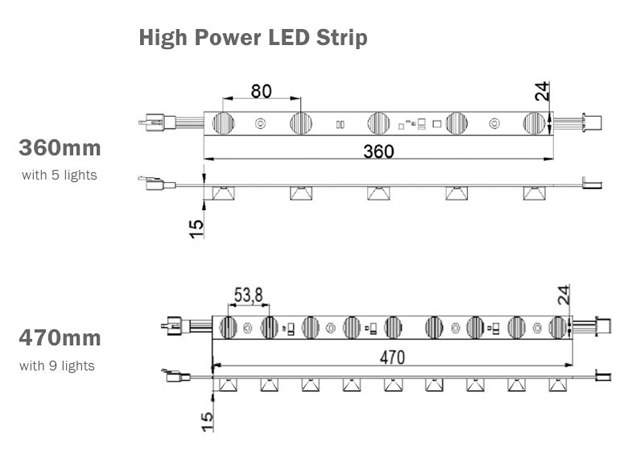

Product 2D Drawing
