AC DC Power Adapter
This AC DC power adapter is desktop transformer LED power supply. The standard moels we have: 12V 3A, 12V 4A, 12V 5A, 12V 7.5A, 12V 10A, 24V 2A, 24V 3A, 24V 4A, 24V 5A, 24V 6A , 24V 7.5A, 24V 8A, 24V 10A...INQUIRE+Desktop Transformer AC DC LED Power Adapter

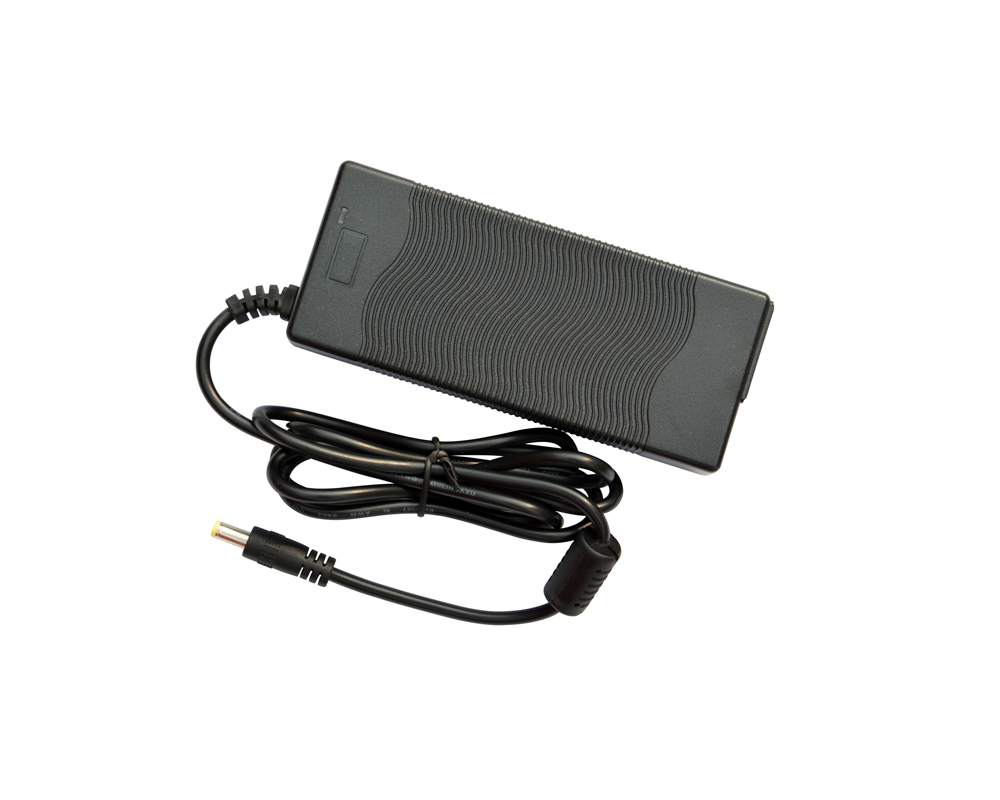

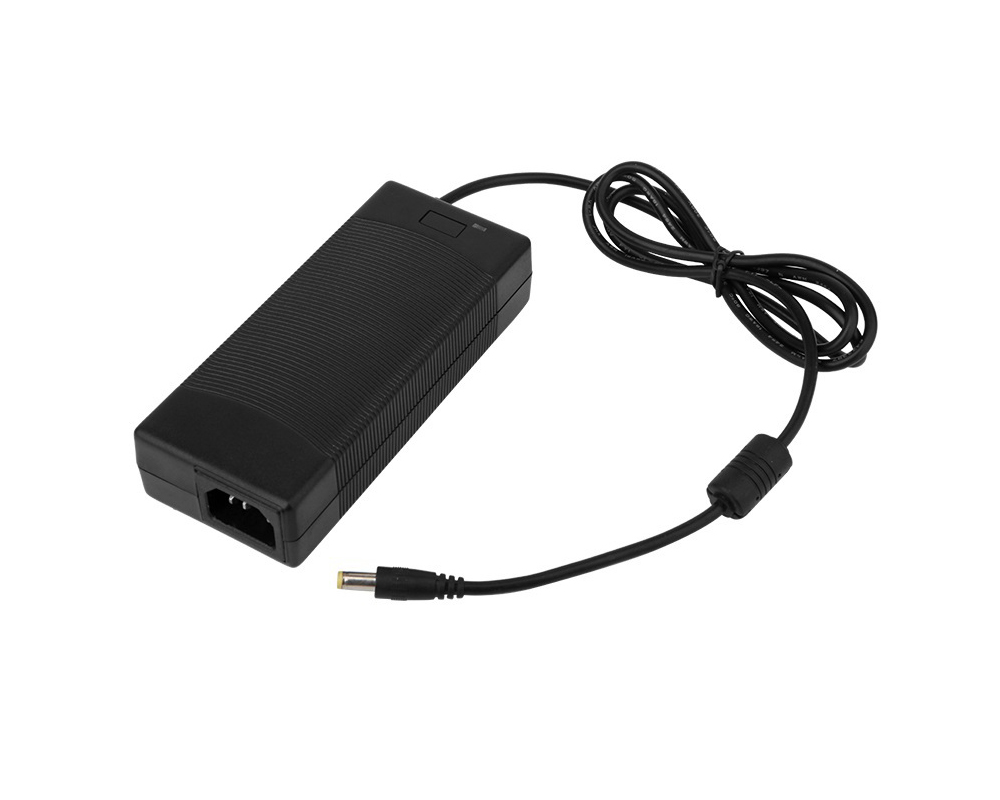

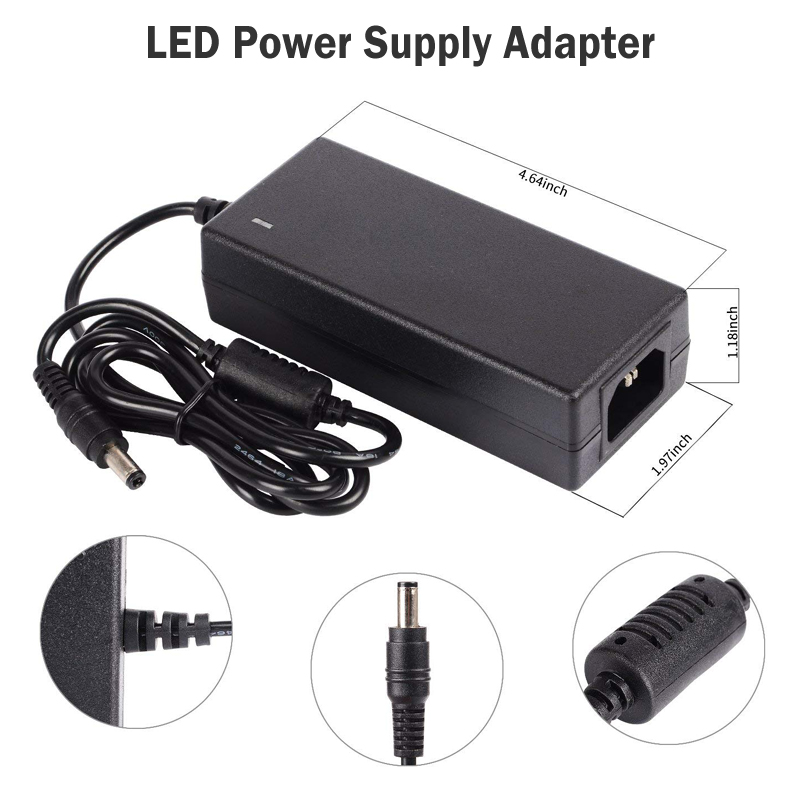

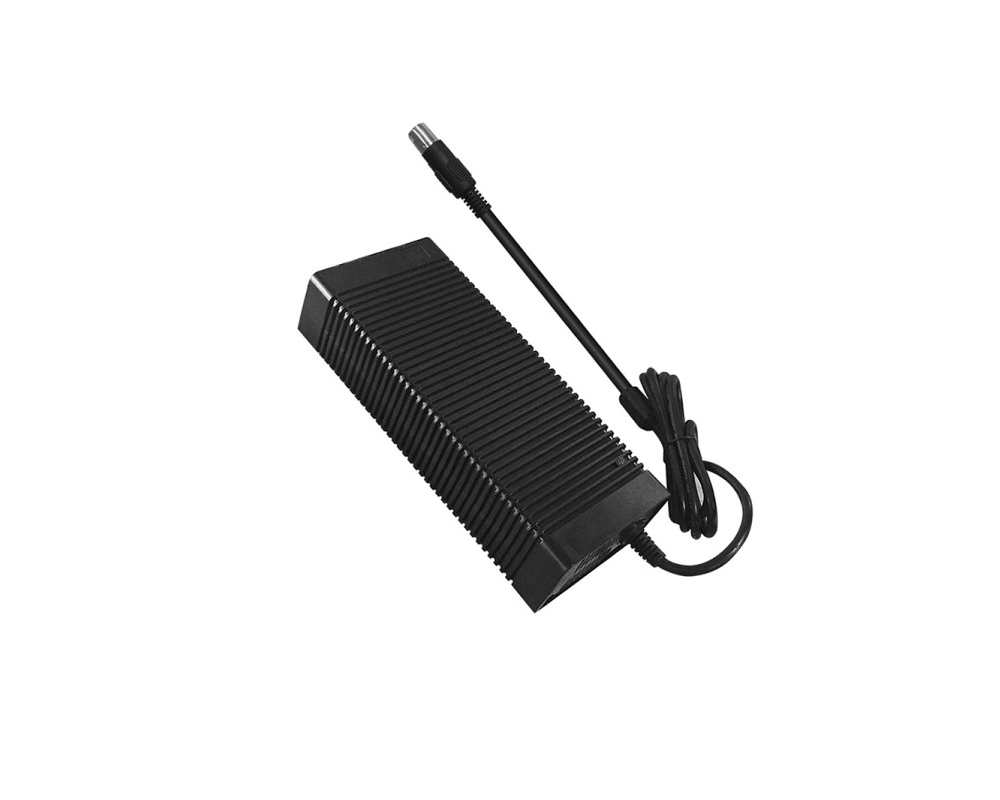

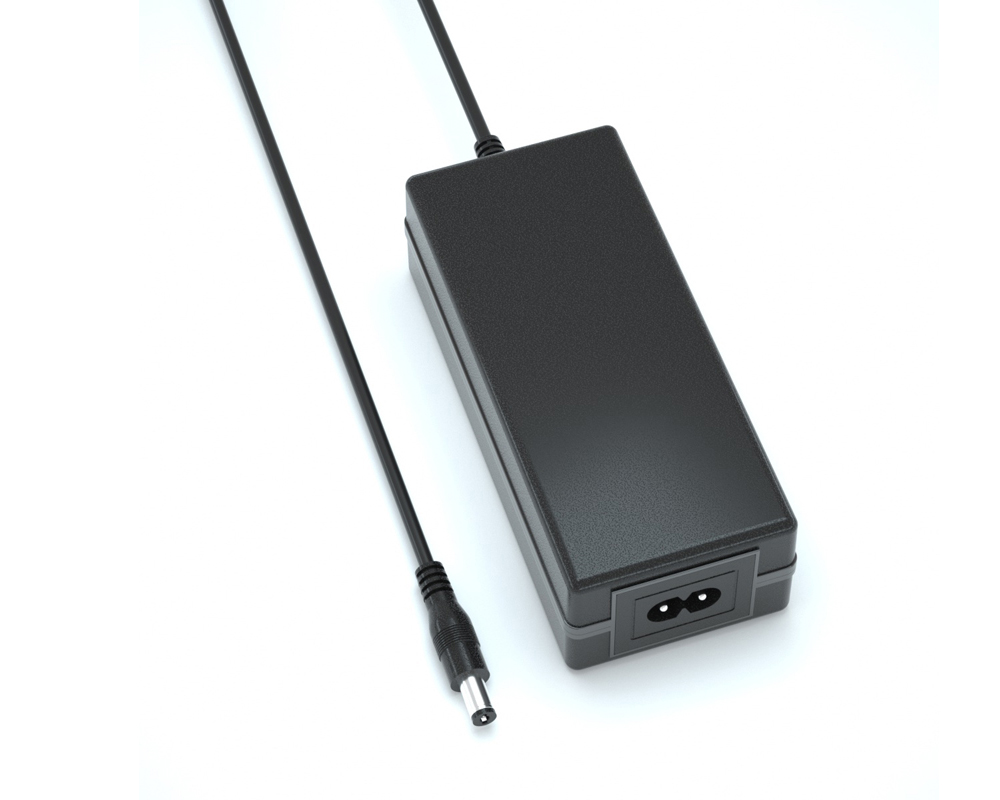

Picture with Details
Certificates and Self-Protections

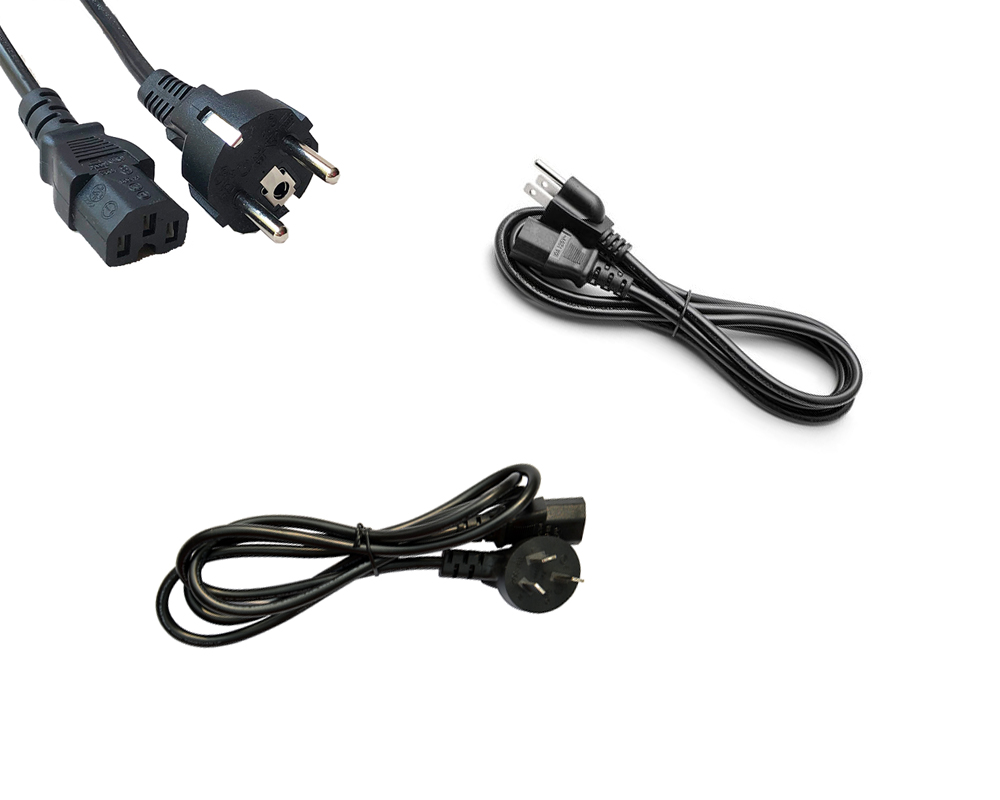

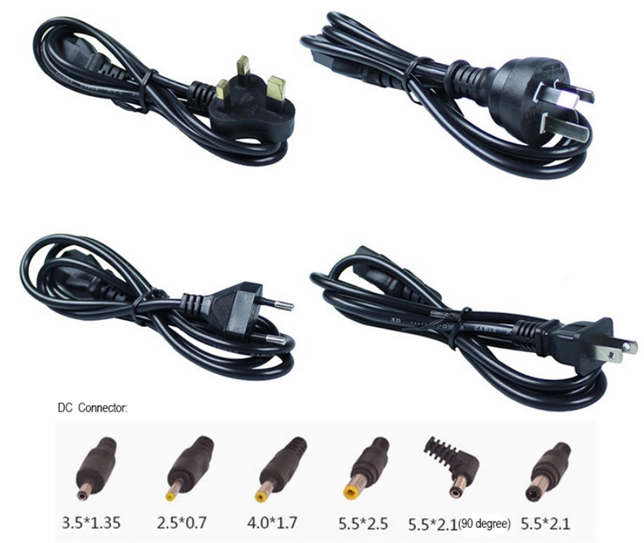

Optional Power Cords and DC Connectors
Specifications
INPUT
VOLTAGE RANGE
90 - 264VAC
FREQUENCY RANGE
47~63Hz POWER FACTOR
180W max at 230VAC EFFICIENCY
ErP 3.0 / CEC VI AC INPUT CURRENT
1.5A max at 230VAC at full load INRUSH CURRENT
40A 230VAC LEAKAGE CURRENT
0.75mA max at 240VAC OUTPUT
DC VOLTAGE (Range)
3V - 24V DC
VOLTAGE RANGE
±5% LOAD CURRENT(Range)
0 - 10,000mA RANGE POWER
12W - 240W RIPPLE & NOISE
120mVp-p max VOLTAGE TOLERANCE
±3% LINE REGULATION
±3% LOAD REGULATION
±3% HOLD-UP TIME
3S/100VAC,2S/230VAC at full load TURN-ON DELAY
150mS/100VAC,100mS/240VAC at full load PROTECTION
Over-Current Protection
120%~150% rated output power
Protection type: Hiccup mode, recovers automatically after fault condition is removed
Over Voltage Protection
25.2~32.4V
Protection type: Shut down output voltage on to recover
Short Circuit Protection
RTH>70℃
Protection type: Shut down output voltage, re-power on to recover
ENVIRONMENTAL
WORKING TEMPERATURE
0℃~40℃
STORAGE TEMPERATURE
-20%~80%RH WORKING HUMIDITY
10 ℃~90℃ STORAGE HUMIDITY
10%~95%RH SAFETY &
ELECTROMAGNETIC COMPATIBILITY
HI-POT TEST
I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC INSULATION RESISTANCE
I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC/25℃/64%RH EMI
EN61347-1-2. UL60950-1. TUV EN60950-1 OTHER
MTBF
15000H min,MIL-HDBK-217F(25℃)
DIMENSION
Please contact us for dimension
For example, desktop power supply: 115×48×38mm
WEIGHT (Range)
(60g - 350g) Please contact us PACKAGING
PE/Poly bag, White box, Giftbox, or Customized CONNECTOR
PLUG
5.5mm x 2.1mm
5.5mm x 2.5mm
4.0mm x 1.7mmOr Customized
CABLE
2464 22AWG/2C 1.2M/1.5M/1.8M or Customized BLACK - LED Strip
