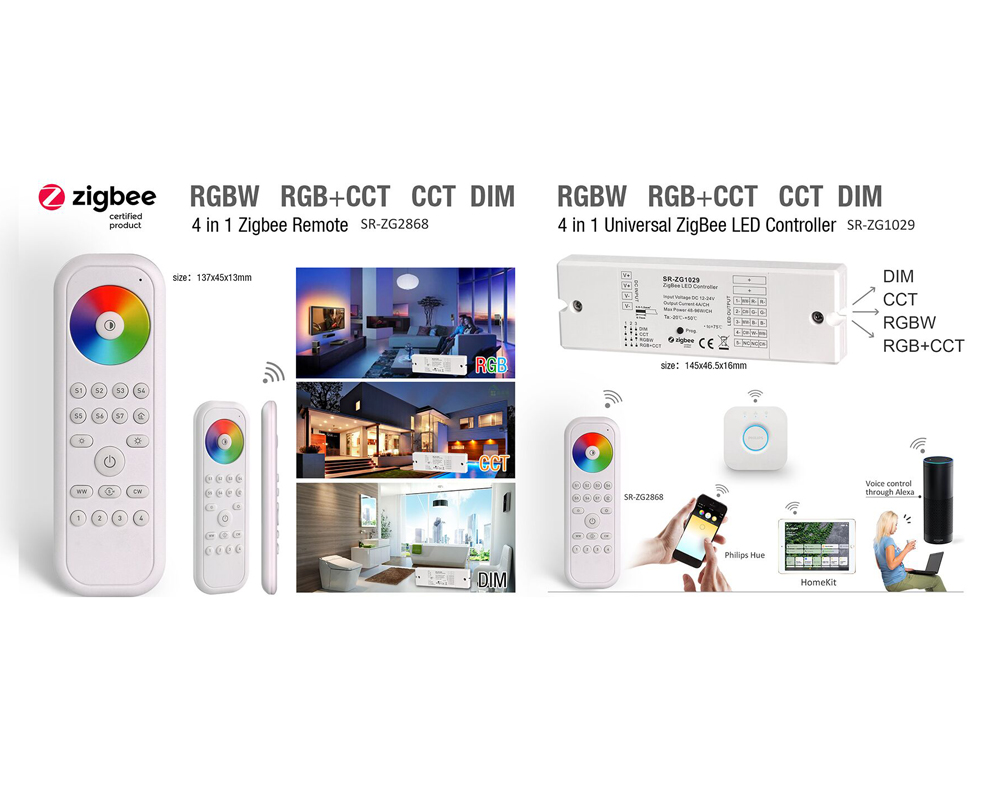

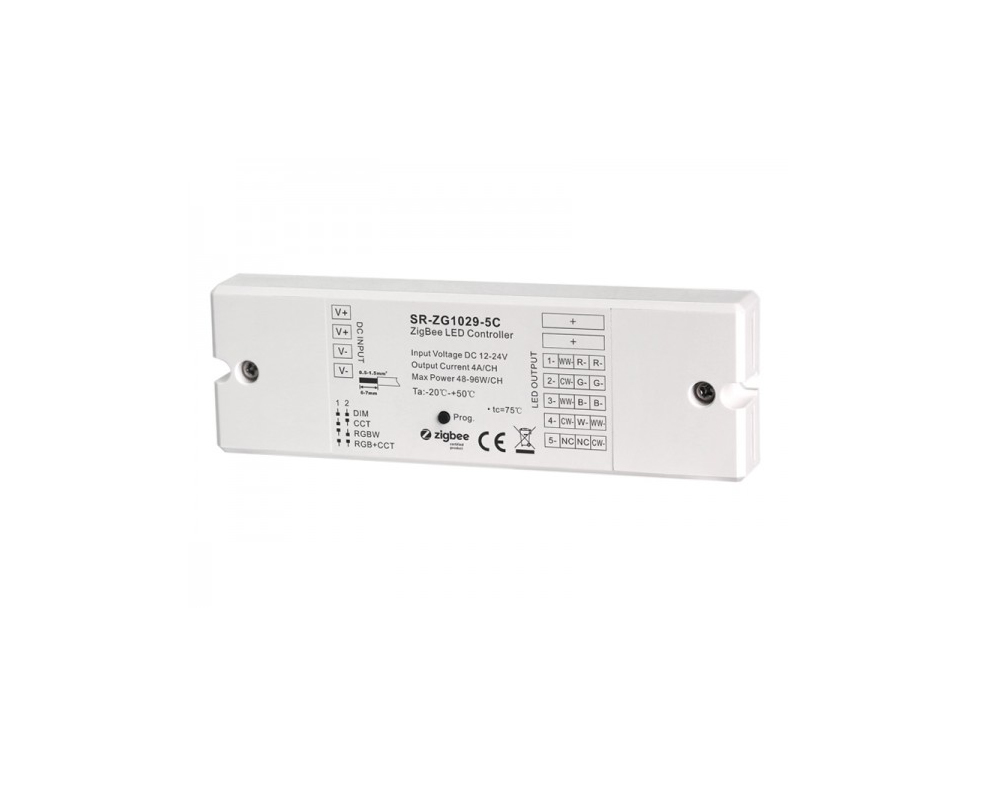

Zigbee 4 in 1 CV LED Controller

This 4 in 1 CV LED controller is a zigbee 3.0 based DIM CCT RGB RGBW RGB+CCT 4 in 1 constant voltage LED lighting device with 5 channels output to control single color, tunable white, RGBW and RGB+CCT LED lighting, and different lighting types can be selected through dip switches. The 4 in 1 Zigbee LED controller can search and pair to Zigbee network and be controlled from your controller or hub interface. Internet remote control option via smart phone, computer or tablet extends your control convenience. The Zigbee LED dimmer can be compatible with universal Zigbee gateways or coordinators. It can directly pair to zigbee remotes through touchlink commission. In addition, once compatible Zigbee remotes are added to the same network, they can bind to and be controlled by the remotes.

The zigbee device is based on zigbee 3.0, it can be linked to and controlled by max. 30 zigbee remotes that support zigbee light link through touchlink. It also supports the new zigbee green power feature, and can bind to and be controlled by max. 20 zigbee green power remotes directly without zigbee hub or gateway.

It is designed with DC 12-24V input and 5 channel constant voltage output, max. output current per channel can be up to 4A, which means a total output of up to 480W.

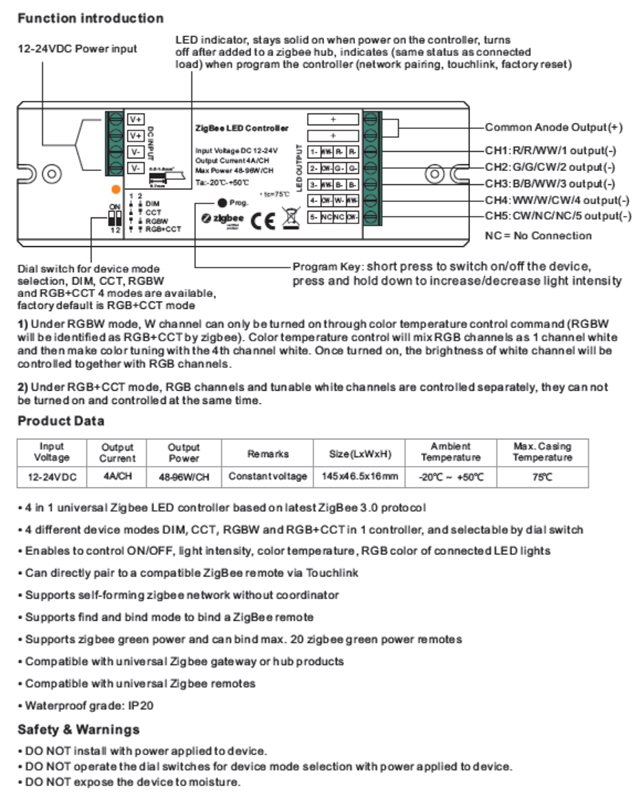

Function Introduction
