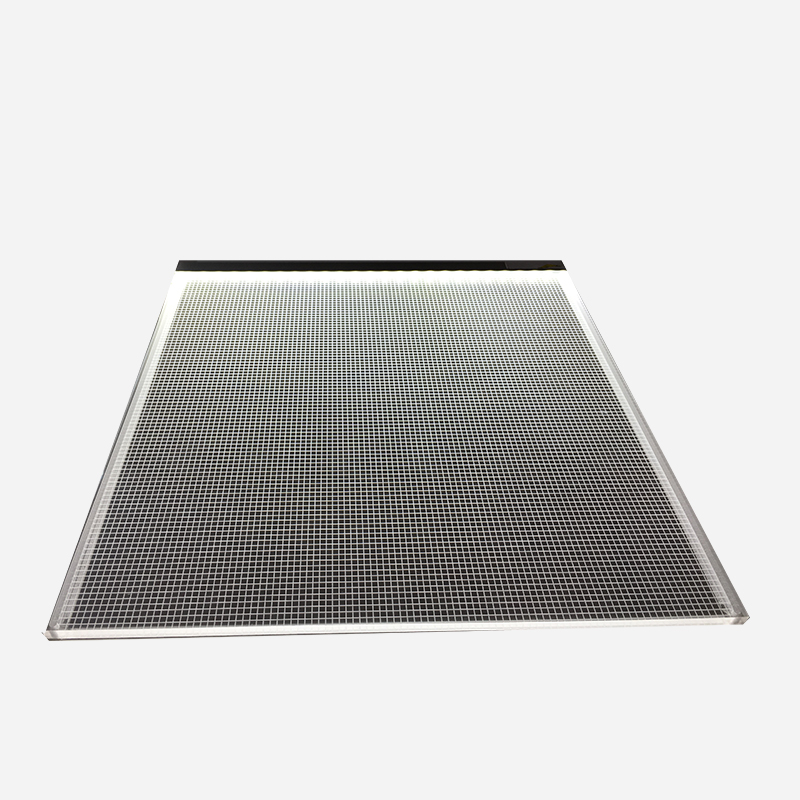

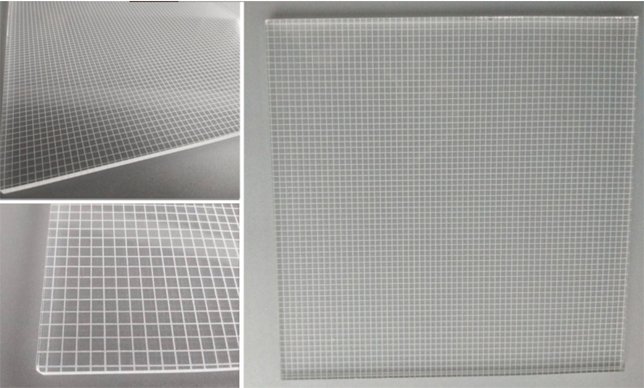

V Cutting LGP
V-cutting is the technology to carve and engrave on the surface of acrylic plates with industrial diamond and CNC machines to gererate V-groooves, of which the sizes and sharps can be adjusted accordingly to the size and thickness .INQUIRE+Engraving Graphic LGP

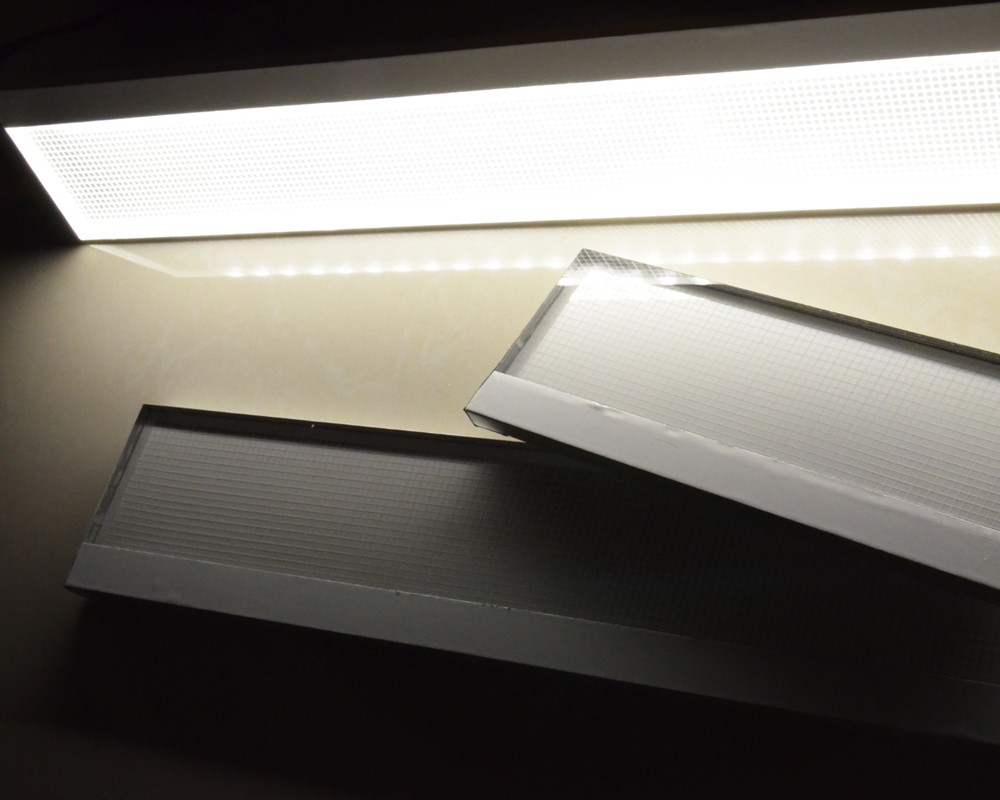

Light guide plate (LGP) is a transparent acrylic panel made from 100% Virgin PMMA resin, on whose bottom face a dot matrix is printed or a line matrix is scratched. The liht source is installed on its edge(s). It makes the light coming from the light source evenly over the whole upper face of the acrylic sheet.
LGP (Light Guide Plate) is a transmission medium of light. It takes the brand-new optical grade PMMA as base material, and adopts the most advanced 3D laser processing or CNC engraving processing technology.
LGP is a kind of high-tech product that takes advantage of light effects, such as refraction, reflection and diffuse reflection, formed by side light source between lines or dots and turns spot light source or line light source into plane light source.

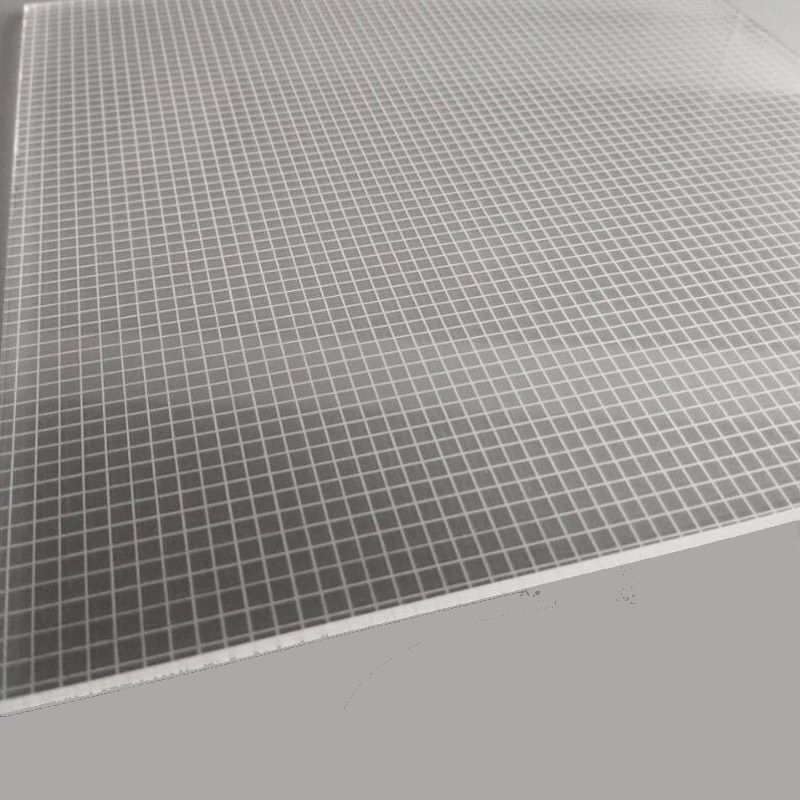

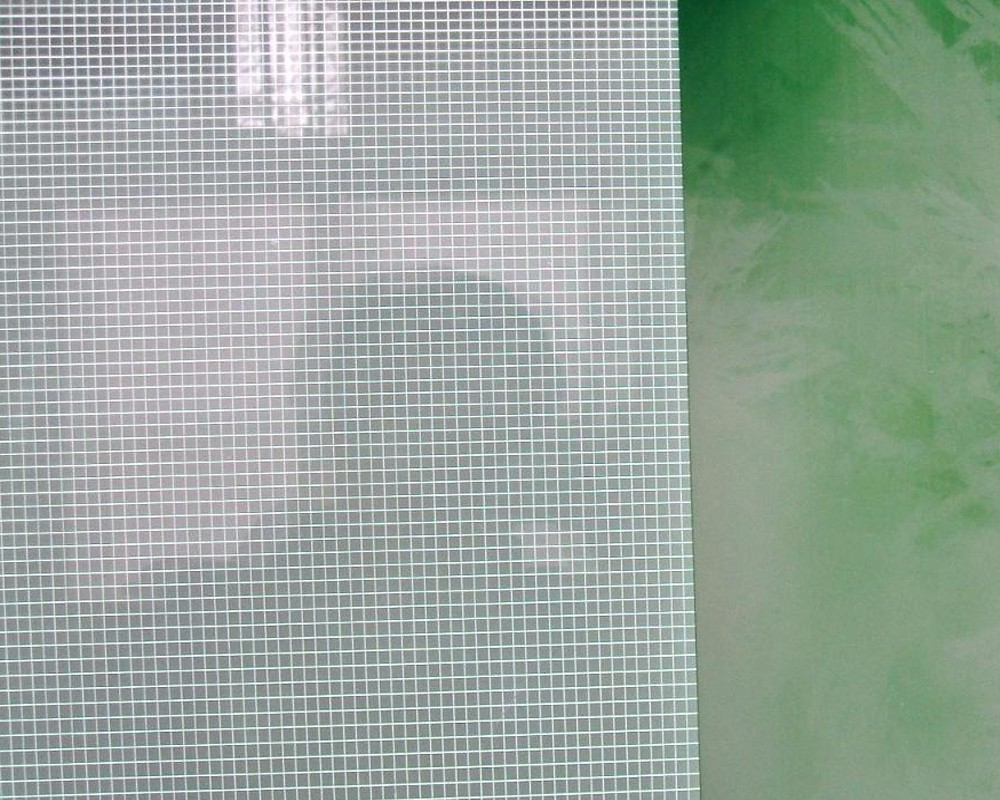

V cutting LGP is using Laser or CNC engraving method to mark on botton of acrylic plate and the spacing of matrix lines is increasing to achieve move even light above 90% uniformity degree.

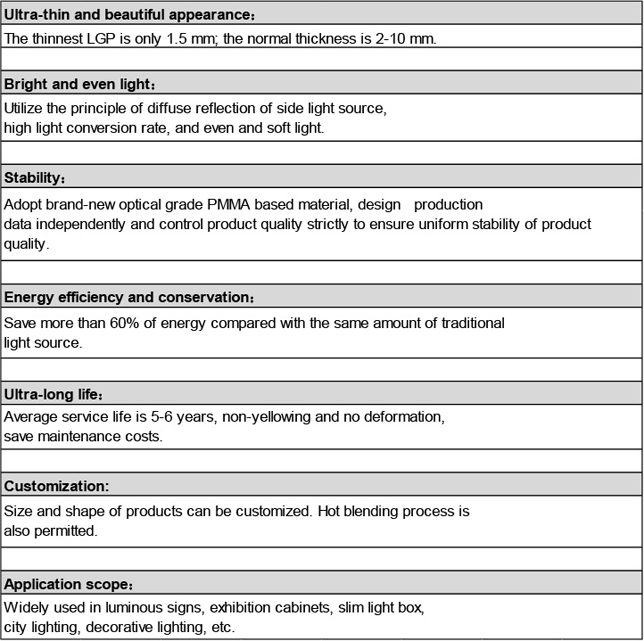

Specifications
Net weight (kg) ≈ SQM (m2) * Thickness (mm) *1.2

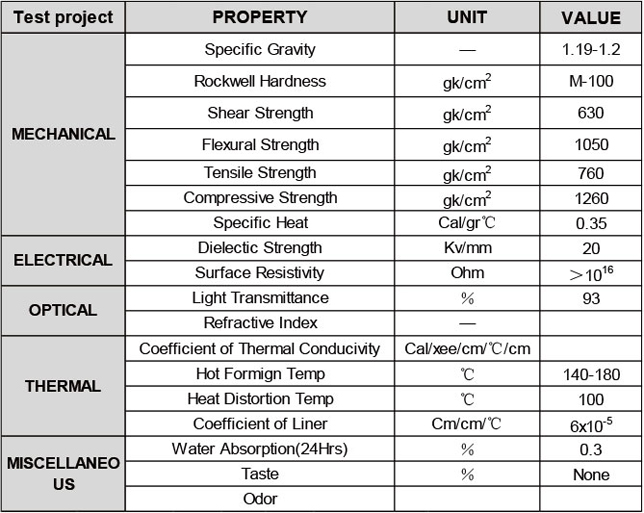

Acrylic Sheet Property
