High CRI Single White Flex LED Tile
High CRI Ra90/95/97 White led tile Size: 24x48CM LED spacing: 20*20mmINQUIRE+- DESCRIPTION
- TEMPLATE
- PACKING DETAILS
- DOWNLOAD

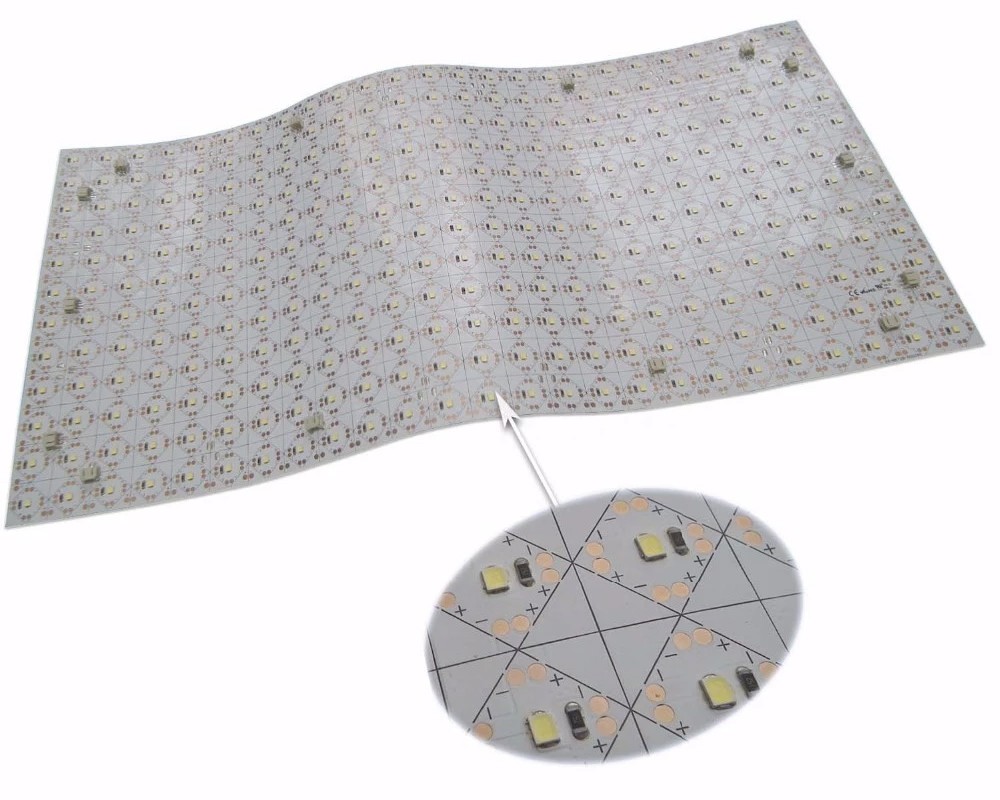

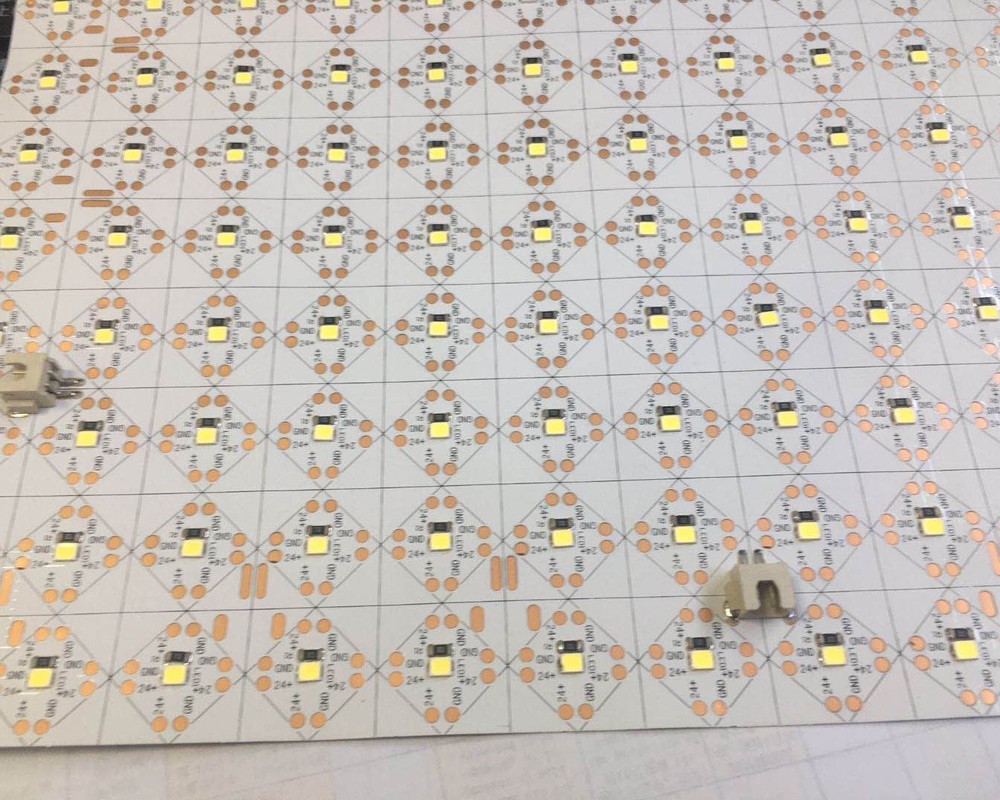

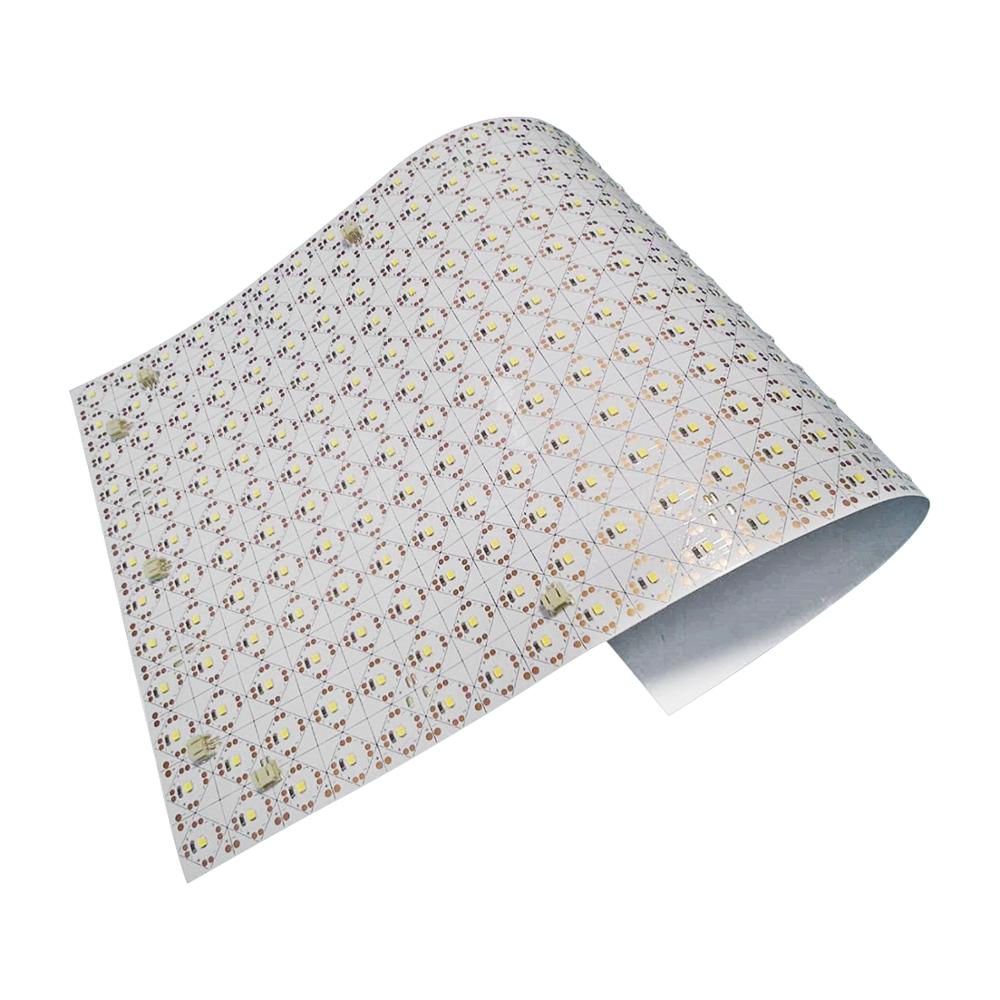

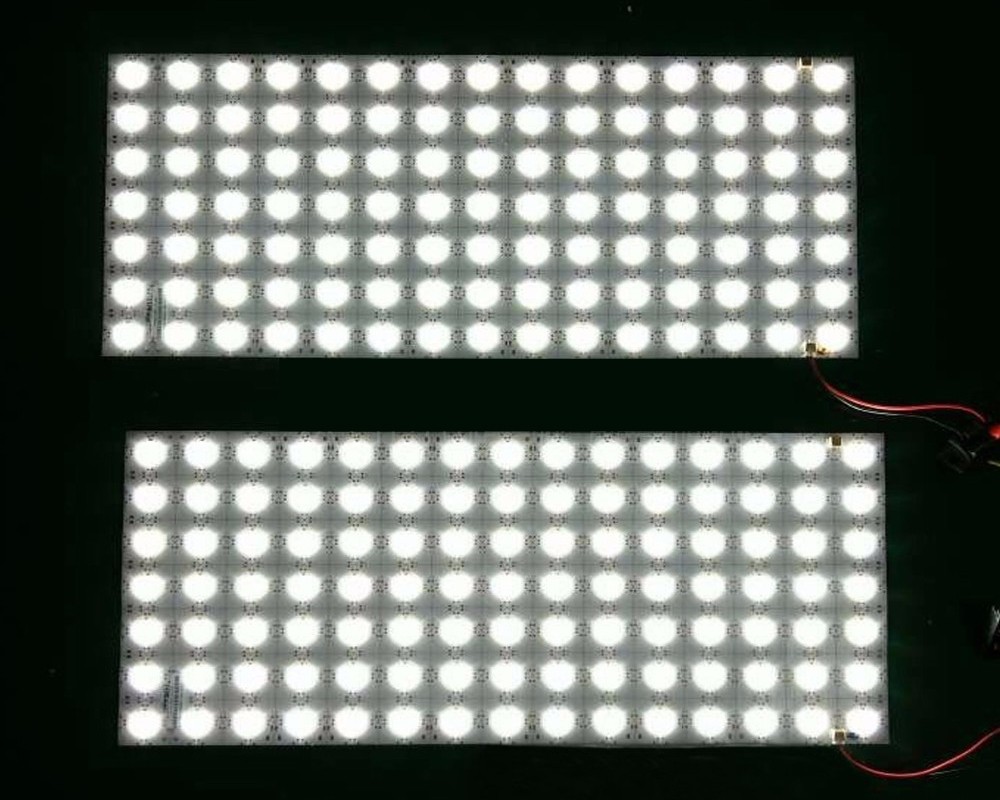

High CRI Single White Flex LED Tile
Features
1. High CRI: Ra90 / Ra95 / Ra97 is available.
2. Full spectrum high R values, R1-R15 value above 90.
3. 12V/24V is available.36V/48V can be customized.
4. 3 year warranty, CE, RoHS,UL
5. Size and led quantity, led color temperature and light level can be customized.
6. Single color, bi color, tri color, 4 colors,5 colors version all are available.

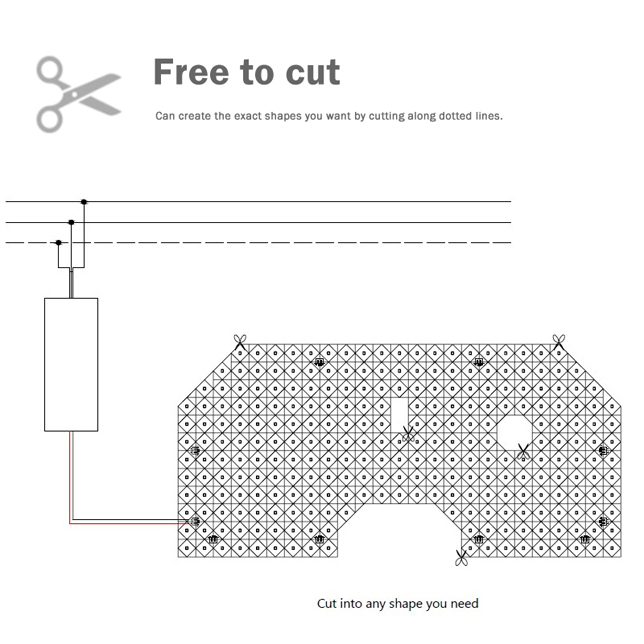

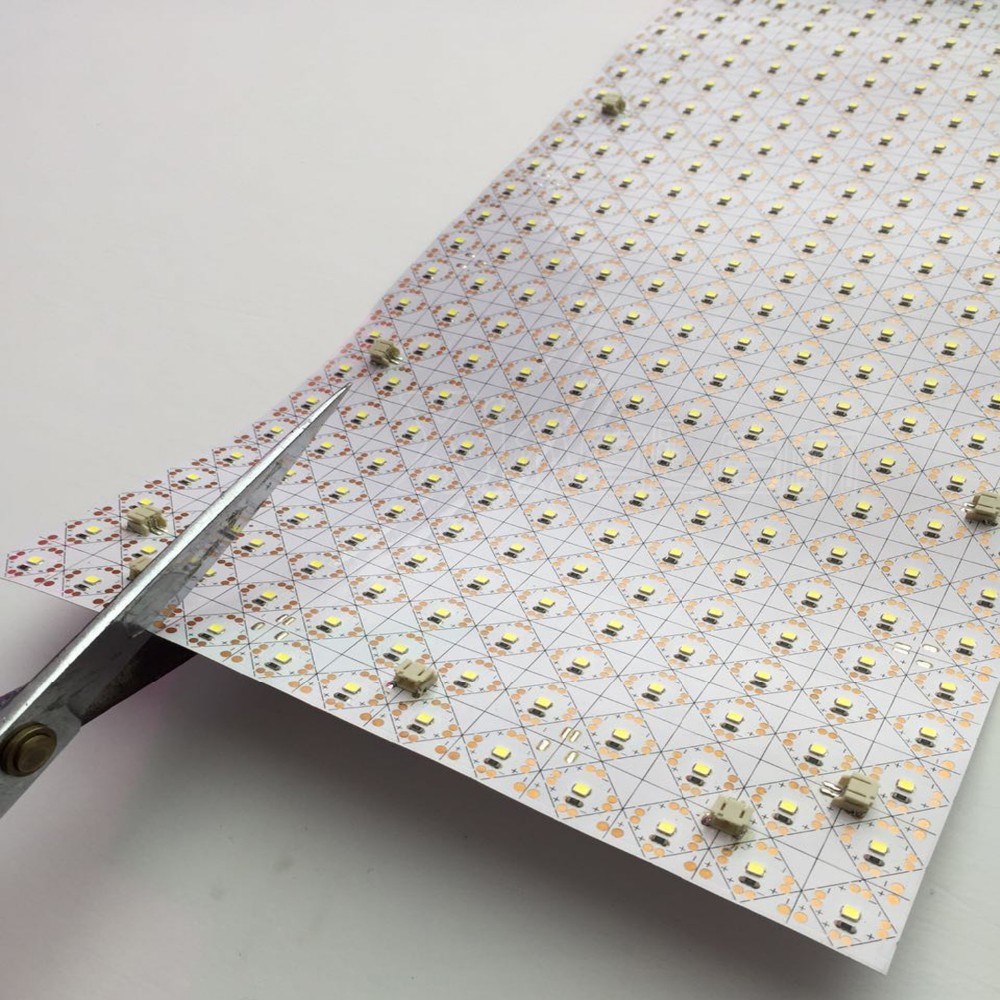

7. Single LED 20*20mm to cut, horizontally, vertically and diagonally cuttable.
8. Field convenient cut and simply connected with plug & play connectors.

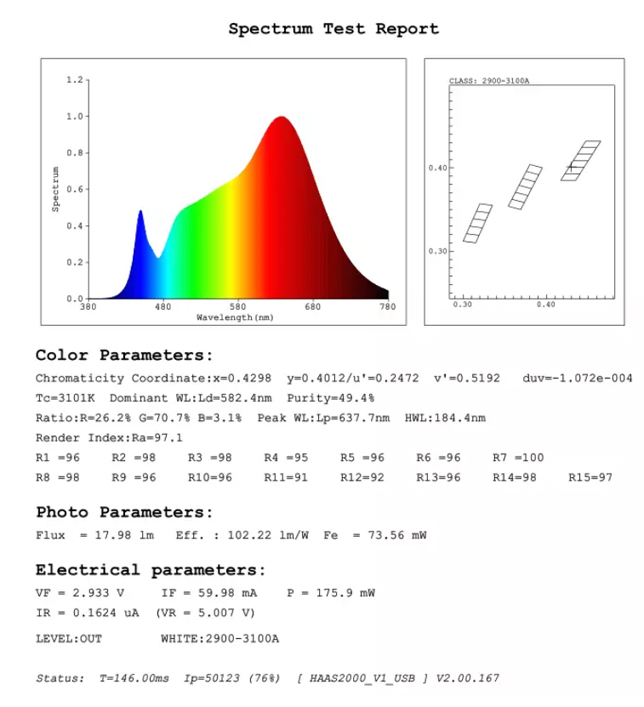

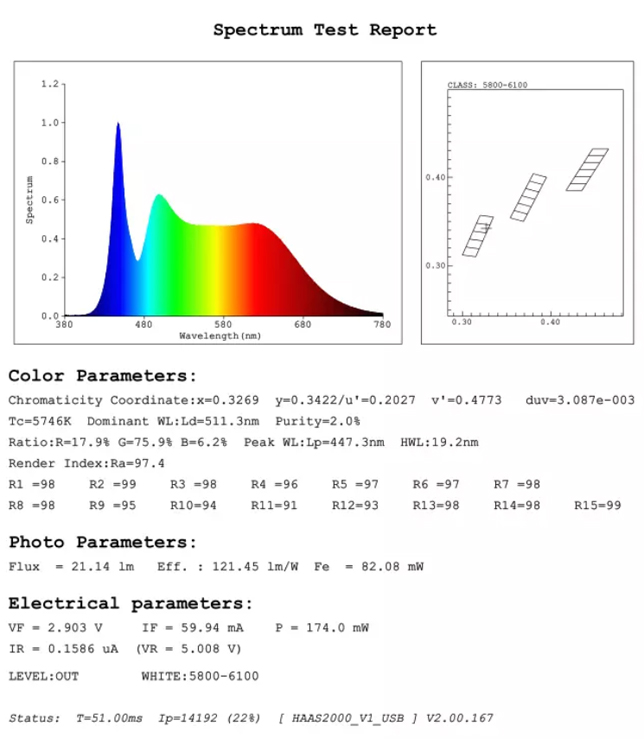

Test reports:
Normal packing is bulking in box, layer by layer with bubble segregation
Parameters:
Absolute Maximum Rating at TA=25°C
Parameter
Symbol
Absolute Maximum Rating
Unit
Forward Current
IF
8400
mA
Forward Voltage
VF
DC24V
V
Electrostatic discharge
ESD
400
V
Operating Temperature
Topr
-25~+60
°C
Storage Temperature
Tstg
-40~+80
°C
