8CM Single Sided Fabric Frame
Single-sided Edge-lit Fabric Light Box Type: SF80 Thickness: 80mm Width: 2mm Material: Aluminum Light Source: LED Color: Silver (can be customized)INQUIRE+8CM Single Side Fabric Frame SEG Light Box
Details:
Name: Single-sided Edge-lit Fabric Light Box
Type: SF80
Thickness: 80mm (90mm available)
Width: 2mm
Material: Aluminum
Light Source: LED
Color: Silver (can be customized)

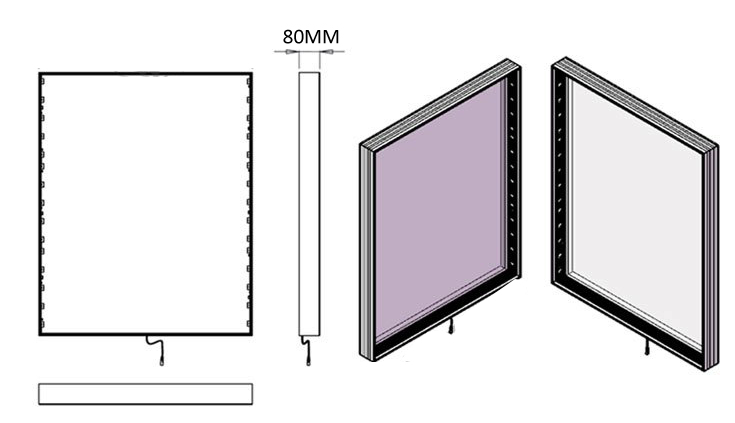

Structure:

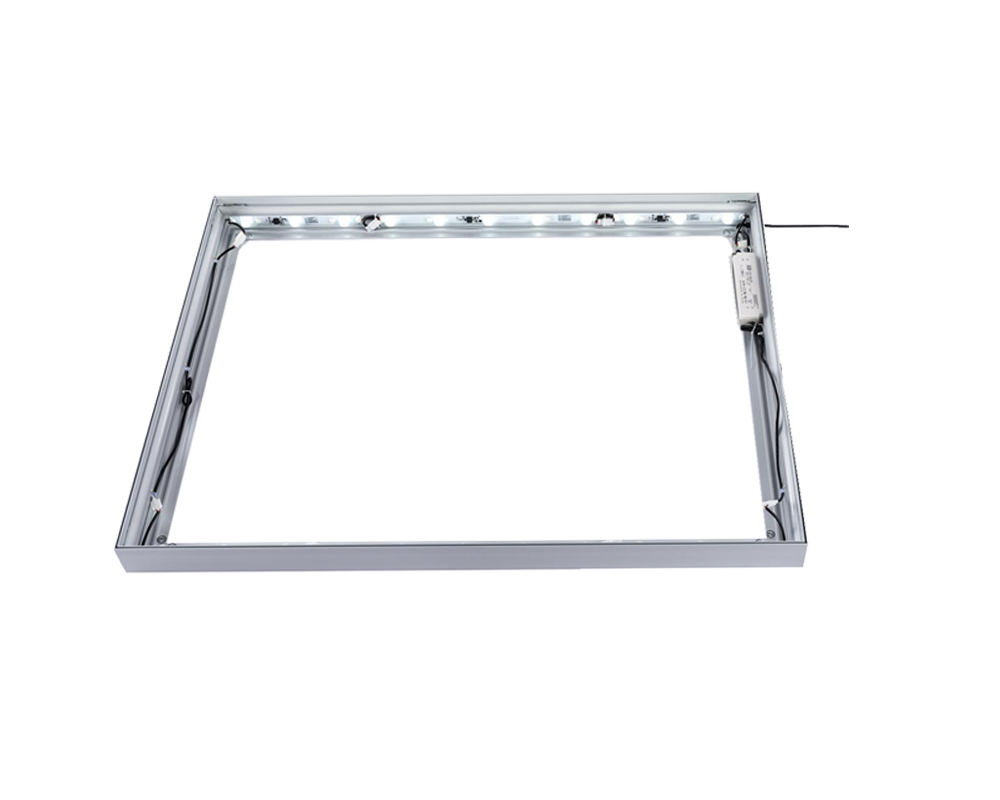

Standard edge lights used for 8CM SEG Frame
Linear LED Drive Built in Installed
<<Built in Class 2 Strip Power Supply <<
Specification & Package:
Item Frame Size(mm) Thickness(mm) Film Size(mm) Volume(m3) SF80 3000*1500 80 3020*1520 0.5 SF80 2400*1200 2420*1220 0.33 SF80 1800*1200 1820*1220 0.25 SF80-A0 1189*841 861*614 0.13 SF80-A1 594*420 614*440 0.07 SF80-A2 420*297 440*317 0.04 SF80-B0 1414*1000 1434*1020 0.18 SF80-B1 1000*707 1020*727 0.09 SF80-B2 707*500 727*520 0.06 >
Parameters:

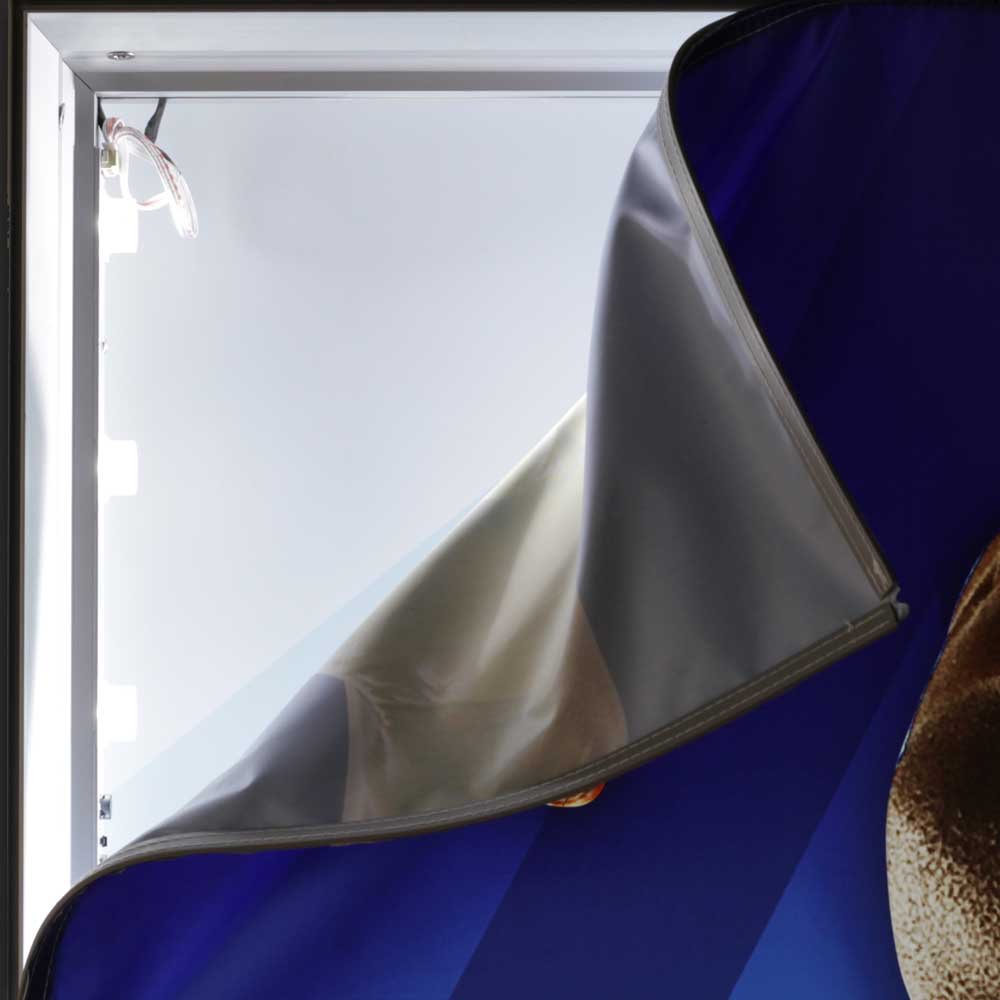

Type SF80 View side Single sided Color Silver (can be customized) Structure Aluminum, UV film, LED light source, adapter Frame Rubber strip design; thickness: 80mm, width: 2mm Installation Wall-mounted type, easy and convenient Change Pictures Easy to change pictures with rubber strips Use Place Business zones and high-end places Light Source LED Voltage 24V Size Size can be customized - LED Strip
