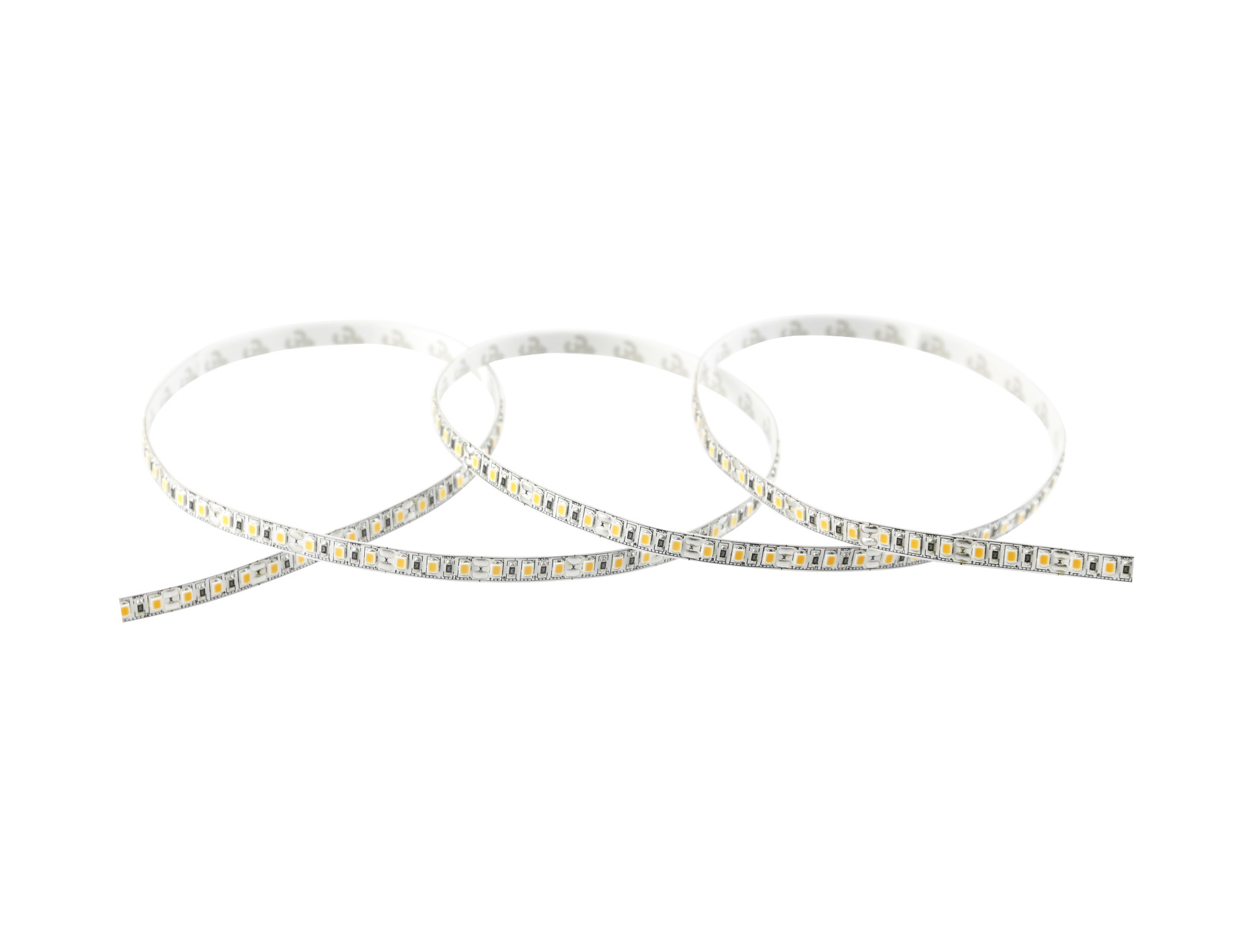

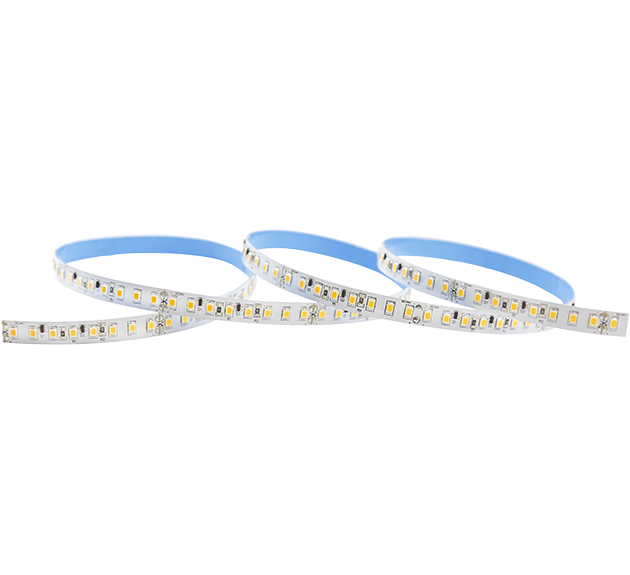

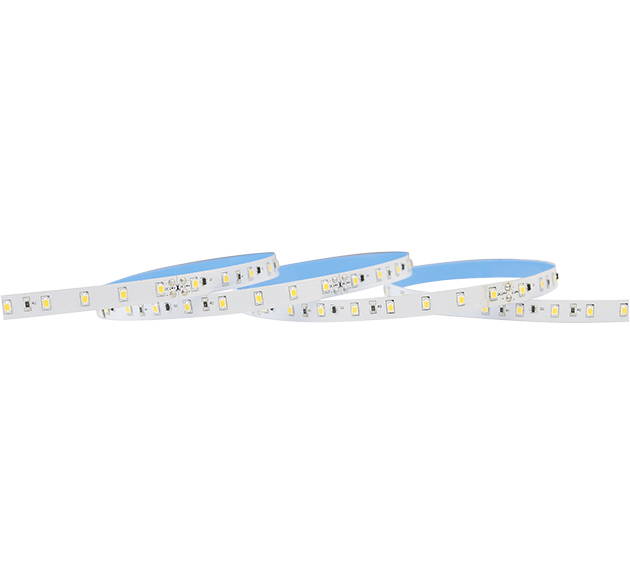

IP22/IP65/IP67/IP68 White 2835
LED Tape Light, 2835 SMD, Epistar chips, 10MM 120LED/M, DC 12V or 24V,
CRI 90+/ 80+
INQUIRE+
IP22/IP65/IP67/IP68 White 2835 LED Ribbon
Features & BENEFITS
- Super bright 2835 LEDs
- Epistar chips, LM-80 tested
- Ra90+ /80+, with high R9 & R13 value
- Wide color temperature range, one bin only for one CCT

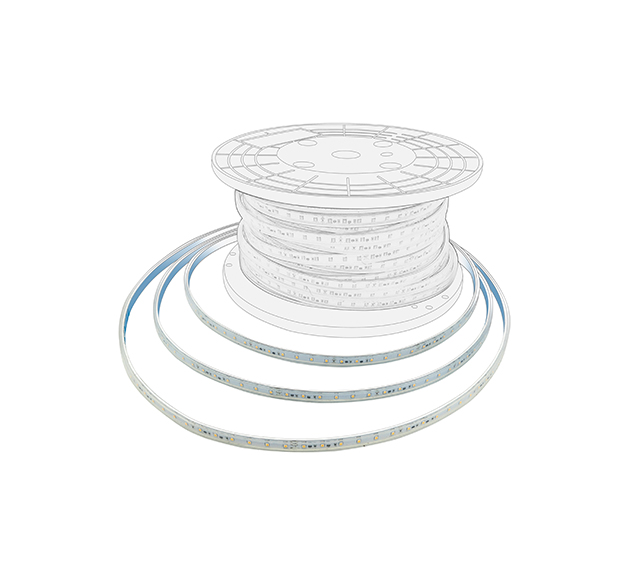

- Silicone extrusion (IP68), tube encased (IP67), silicone coated(IP65) & indoor IP22 are available
-Cuttable every 3 LEDs for 12V, 6 LEDs for 24V

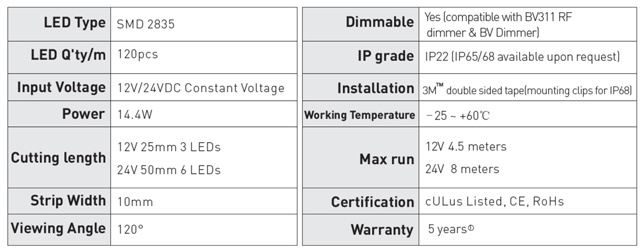

Basic Specifications
| Part No. | Input Voltage | Power/m | LEDs/m | Lumen/m | CRI/Ra | Cuttable Length | Max Run |
| SL-TL-2835-120-12 | 12VDC | 14.4W | 120PCS | 1324-1390lm | 80+ | 25mm | 4.5m |
| SL-TL-2835-120-24 | 24VDC | 14.4W | 120PCS | 1324-1390lm | 80+ | 50mm | 8m |
Applications:
Ideal for the residential and commercial use, such as kitchen, bedroom, closet, stairs, shops, retails, offices etc.

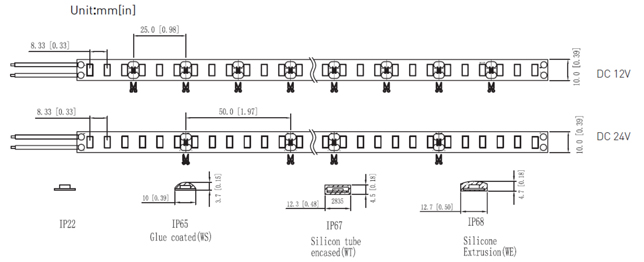

Dimensions:
Package:
| Order Code | Net Weight / CTN | Gross Weight / CTN | Units / CTN | Carton Size |
| IP20 | 12.0(±10%) kgs | 15.0 (1±10%) kgs | 100 rolls | 550*400*340mm |
| IP65 | 25.0 (±10%)kgs | 26.0 (1±10%) kgs | 100 rolls | 550*400*340mm |
| IP67 | 25.0 (±10%)kgs | 26.0 (1±10%) kgs | 100 rolls | 550*400*340mm |
| IP68 | 30.0(±10%)kgs | 32.0 (1±10%) kgs | 60 rolls | 550*400*340mm |

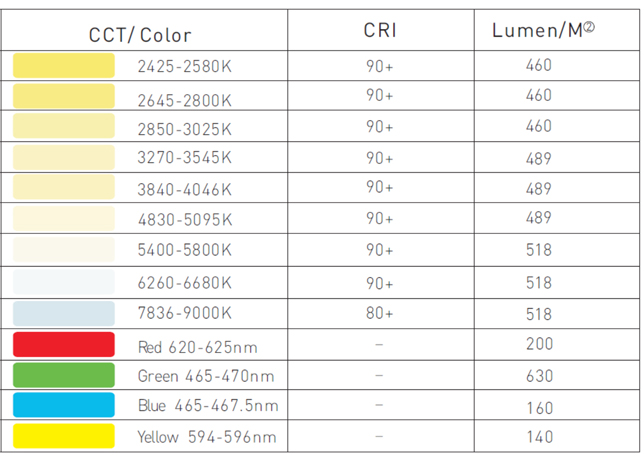

Specifications
CCT Range:
