12V Mini 3mm COB LED Strip Light
Mini COB LED strip is designed for small narrow space applications. It is super slim, yet dot free and cuttable. When you install it into furnishings or wall murals, you can't see hot spots, only the light.INQUIRE+12V Mini 3mm COB LED Strip Light
Mini COB LED strip is designed for small narrow space applications. It is super slim, yet dot free and cuttable. When you install it into furnishings or wall murals, you can't see hot spots, only the light.
Product Feature:
LED Type: COB strip lighting
P/N: COB 504LED/m, 5m / roll strip
Input voltage: DC 12V
PCB width: 3mm
Brand: Epistar or branded chip
Chip Wire: Purity gold wire
Beam Angle: 180° Emitting
Lifetime: LM80- 50000Hrs
Operating Temp. -20 ~ 45°C
PCB: 2Oz Cooper/ double-side FPCB
Mounting: Imported 3M tape 300sle
LED BIN: ONE BIN Only
Packaging: 300meter/ctn. (68x26x28cm)

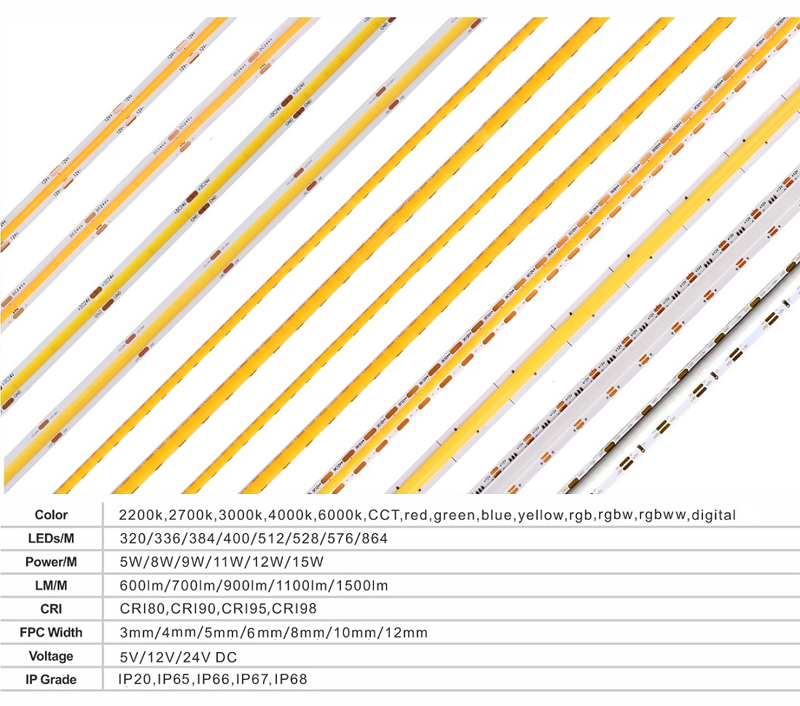

We provide full range of COB LED strips for your choices. They are high CRI 90+ and dimmable.
Mini COB LED Strip Specifications
Item Code COB-504-V12-P3 Input Voltage DC 12V LED Type COB Peak Power 10W/m Color 2700K/3000K/4000K/6500K/R/G/B Total power per roll 50W LED Density 504pcs/m Lumen 1000-1200lm/m Cuttable Segment 50mm Ra 90+ PCB Width 3mm IP Grade IP20/IP65/IP66/IP67/IP68 Max Run Length 10m Warranty 3 years Reel Length 5m Certificate UL CE RoHS - LED Strip
