8mm 24V Rigid LED Strip

PRODUCTS

Position： Home » PRODUCTS »LED Strip »Rigid LED Strip

This 8mm rigid LED strip is designed for constant voltage 24V LGP edge lighting. With high effiency 150mA high quality Sumsung LED, it is great for LED light panel, LED light boxes or other professional lighting.

INQUIRE+

DESCRIPTION
TEMPLATE
PACKING DETAILS
DOWNLOAD

24V Rigid Strip Light

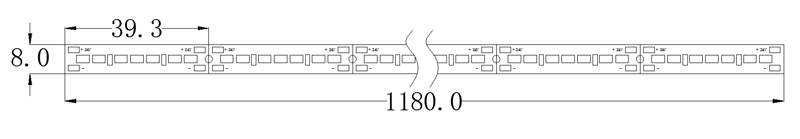

Product 2D Drawing

24V Rigid Strip Light.jpg

Features

(1) The 2835 led from Samsung of South Korea is adopted, which has the characteristics of high luminous efficiency, high brightness and long service life;

(2) Adopting the national standard aluminum substrate technology, the heat dissipation is better, the service life is longer, and the light attenuation is smaller;

(3) All raw materials are environment - friendly and meet RoHS standards, CE and UL certificated;

(4) Smaller cut-off size, more flexible in use, convenient for corresponding to various sizes of products.

Rigid Strip Light Specifications

Item	Parameter	Unit
Product Size	118081.6	mm
LED Compound Mode	7 Cascase 30 Parallel	PCS
Minimum Cut Size	39.33	mm
LED QTY	210	PCS
LED Spacing	4.5	mm
Voltage	DC 24	V
Current	833±10%	mA
Power	21.2±10%	W
Luminous Flux	2988±10%	LM
Efficacy	138	LM/W
CCT	6000-6500	K
CRI	≥80	Ra
Working Temperature	-20-50	℃
Storage Temperature	-20-60	℃
Level of Protection	IP33	-

Item	Parameter	Unit
LED Type	2.77*3.2	mm
LED Chip	EPISTAR	-
LED Current	150	mA
LED Tc	6000	K
LED Color	White	-
LED Luminous Flux	26-28	LM
CCT	6000-6500K	K
CRI	>80	Ra
