Custom Size Frameless LED Light Panel
Framless LED Panel Light is produced with LED strip embedded in the CNC engraved LED channel. With flexible and cuttable constant low voltage LED strip, the frameless LED panel can be made in custom size and shape easily up to 3x2M.INQUIRE+- DESCRIPTION
- TEMPLATE
- PACKING DETAILS
- DOWNLOAD
Custom Size Frameless LED Light Panel
Framless LED Panel Light is produced with LED strip embedded in the CNC engraved LED channel. With flexible and cuttable constant low voltage LED strip, the frameless LED panel can be made in custom size and shape easily up to 3x2M.
Product Features
Ultra thin, super bright, uniform light guide, energy saving, environmental protection, no dark area, durable, not easy to yellow, easy to install and repair

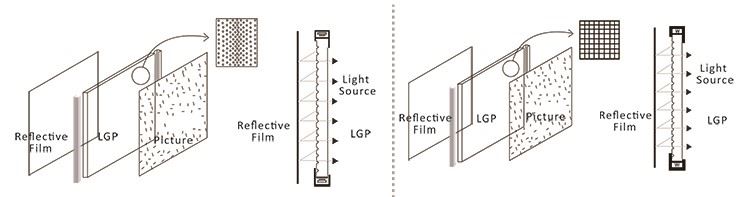

Structure
LGP LED Technology
LGP (Light guide plate) is a transmission medium of light. It is to use optical grade acrylic / PC plate, and high-tech materials with high refractive index and no light absorption to print light guide points on the bottom surface of optical grade acrylic plate by laser engraving, V-shaped cross grid engraving and UV screen printing technology. The optical grade acrylic plate is used to absorb the light emitted from the lamp on the surface of the optical grade acrylic plate. When the light hits each light guide point, the reflected light will diffuse to all angles, and then the reflection condition is destroyed and the light is emitted from the front of the light guide plate. Through various light guide points with different density and size, the light guide plate can emit light evenly.

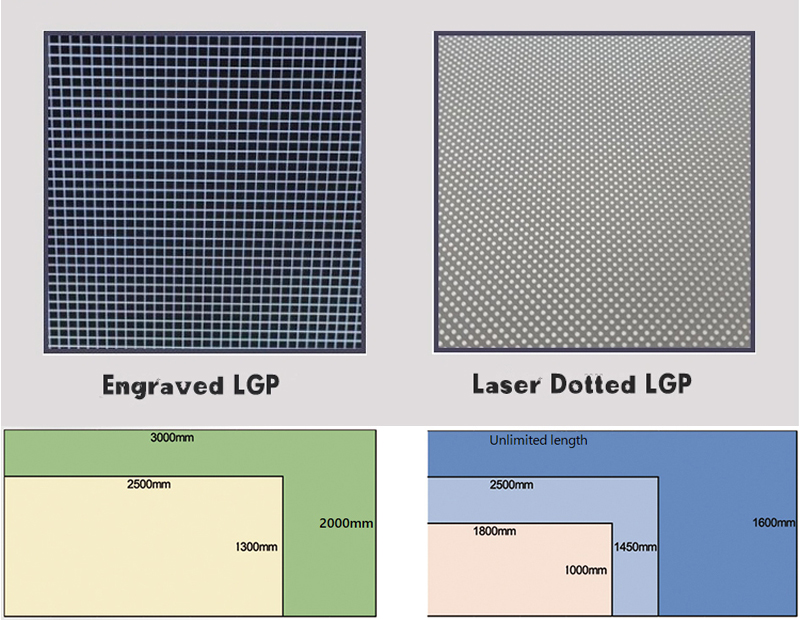

Laser-dotting Diagram Engraving and Scribing Diagram
LGP is a kind of high-tech product that takes advantage of light effects, such as refraction, reflection and diffuse reflection, formed by side light source between lines or dots and turns spot light source or line light source into plane light source. LED light guide panel is to embed LED light source on the edge of LGP as a simple flat versatile LED sheet to be used in a variety of places.
LGP technology
Comparison of LGP Processing Technology
Contrastive Items
Silkscreen Printing LGP
Laser-engraving LGP
Machine-engraving V-cutting LGP
Reflective Unit
Ink Printing Plane Point
Dots
V-type Trunking
Reflective Material
Chemical Material on the acrylic surface
Dots by Laser Gasification
V-cutting Trunking
UV Protection
NO
YES
YES
Brightness Contrast
/
30%
25%
Size Tolerance
1mm
0.1mm
0.1mm
Service Life
2-3 Years
5-6 Years
5-6 Years
Application Scope
Indoor
Indoor/Outdoor
Indoor/Outdoor
Engraving V-cutting Machine Dimension Laser-engraving Machine Dimension
Small quantity in small sizes will be packed in carton box, small quantity in middle sizes will be packed in honeycomb box, and big sizes or quantity will be packed in wooden box.
OEM Services
We only use the high-end brand-new optical grade PMMA as base material to ensure the durability, and adopt the most advanced 3D laser processing or engraving processing technology to make perfect even light.
