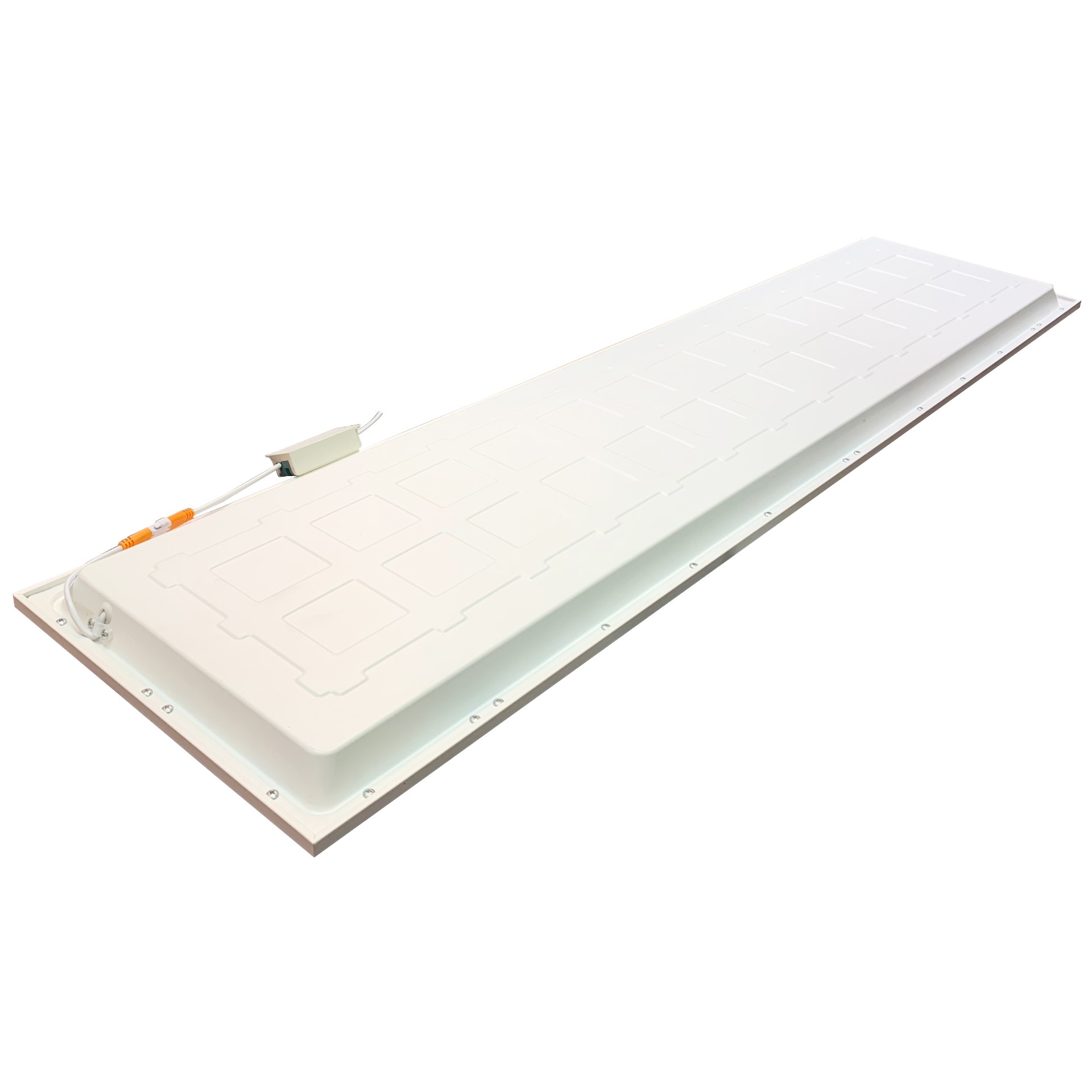

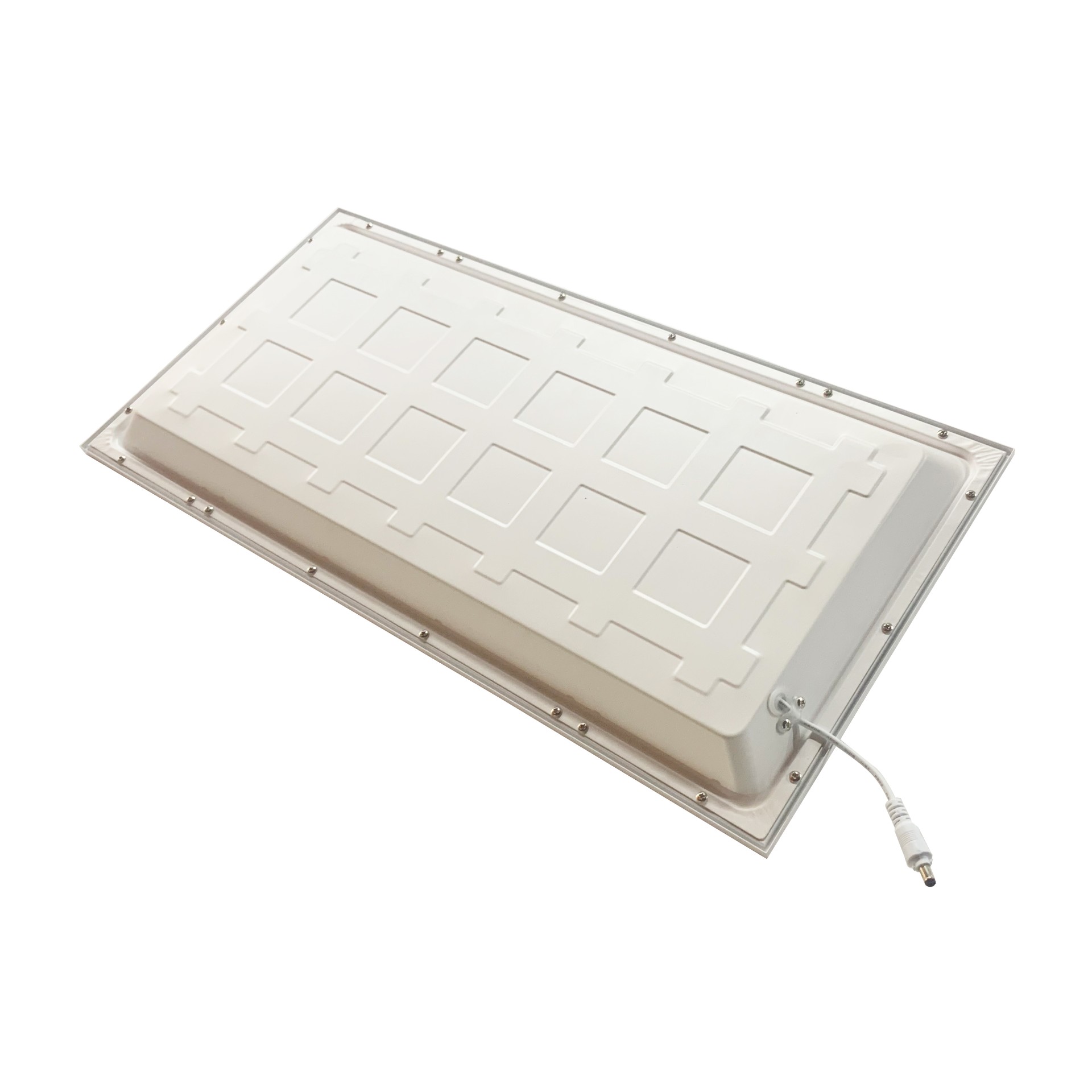

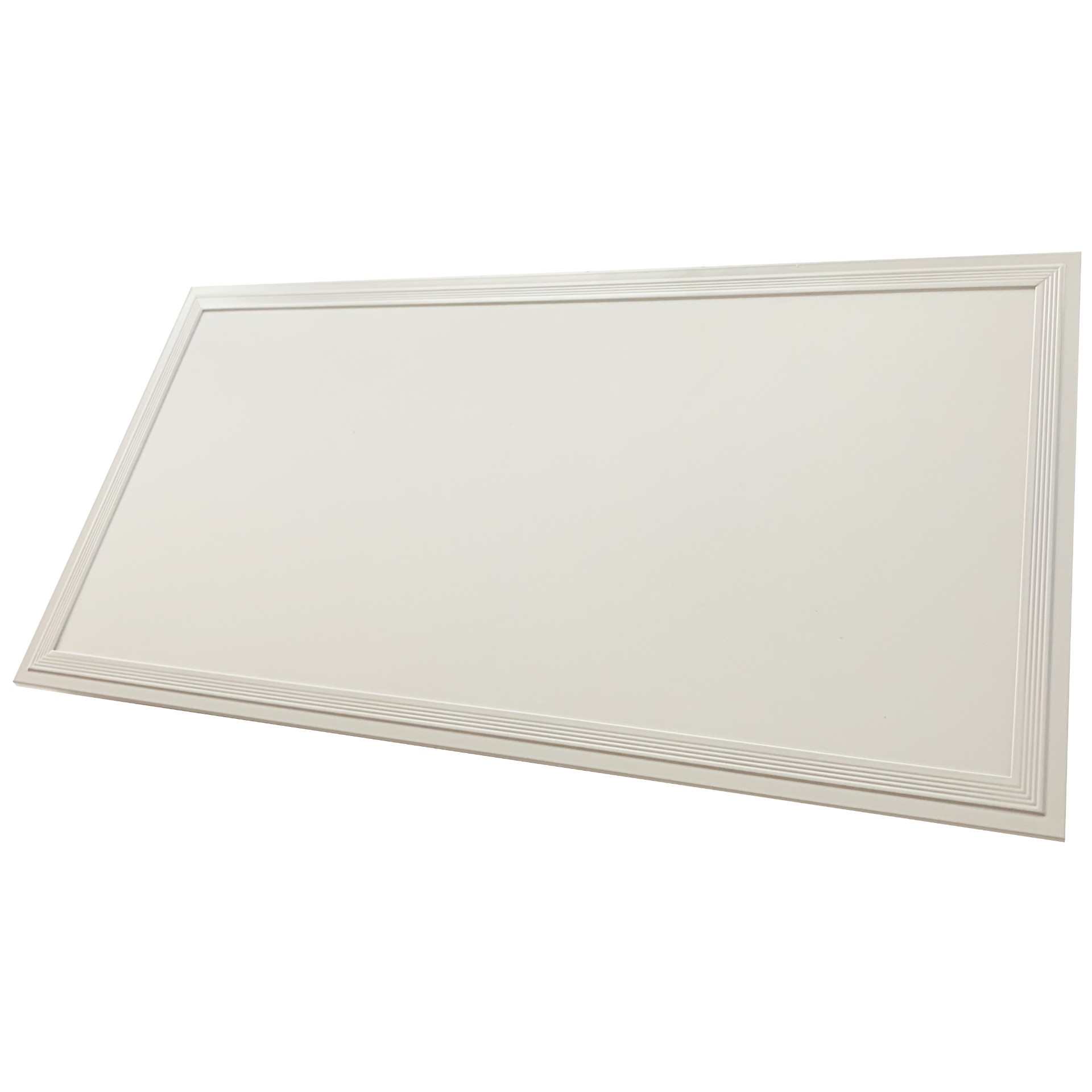

Backlit Panel Flat LED Ceiling Lights
This flat LED ceiling lights use backlit panel instead of edge lit LED technology. With backlit diffused rigid LED strip instead of traditional LGP acrylic LED panel, the flat LED panel is super bright, more stable, yet lightweight.INQUIRE+Backlit Panel Flat LED Ceiling Lights
This flat LED ceiling lights use backlit panel instead of edge lit LED technology. With backlit diffused rigid LED strip instead of traditional LGP acrylic LED panel, the flat LED panel is super bright, more stable, yet lightweight.
Features:
1. Without LGP, never turn yellow
2. Isolated driver,PF>0.9, THD≤ 15 %
3. Super Bright SMD2835 LEDs, LM80 rated Ra>80
3. Lumen output:110LM/W or 130LM/W
3. AC200-240V or 100-277V
4. Non-flicker, no dark spot, protect your eyes
5. 5-7 days fast delivery once confirmed
6. Ideal replacement for traditional troffer with over 80% energy saving
7. 5 Years warranty
Designed to retrofit any office ceiling grid and replace fluorescent tube lights. This super skinny panel is perfect to be surface mounted. At 90 lumens per watt, the PAN36 outputs an impressive 3240 lumens which makes it a direct replacement for a traditional 72W fluorescent tube. We have the choices of 3000K, 4000K or 6000K, which means we can cater to your colour output requirements. These LED Panels are perfect for any office, school and other lighting spaces.

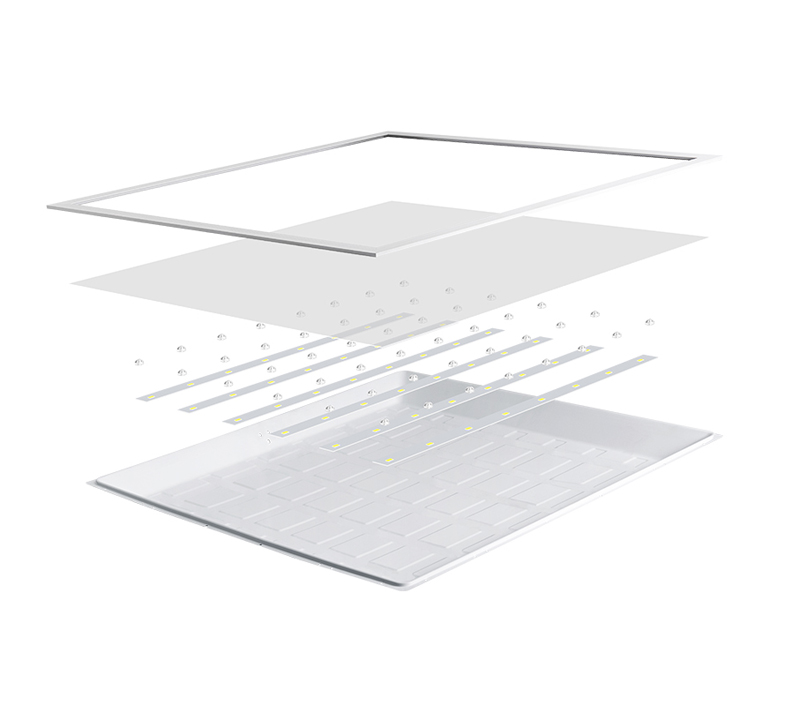

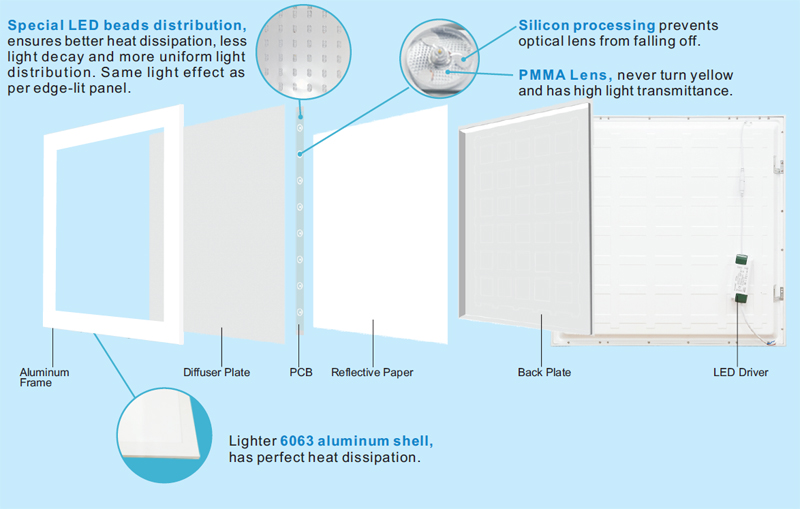

Backlit LED Flat Panel Structure
Aluminum Frame
-->200g Aluminum Frame with white lacquer
-->595*595mm, 620*620mm
-->295*1195mm, 595*1195mm
Diffuser Plate
-->1.2mm PS Diffuser Plate
LED Chips
--> 9V100mA LED Chips SMD2835
-->48 pcs LED Chips
Lens
-->PMMA Lens 48 pcs
Baseplate
0.35mm cold-rolled sheet

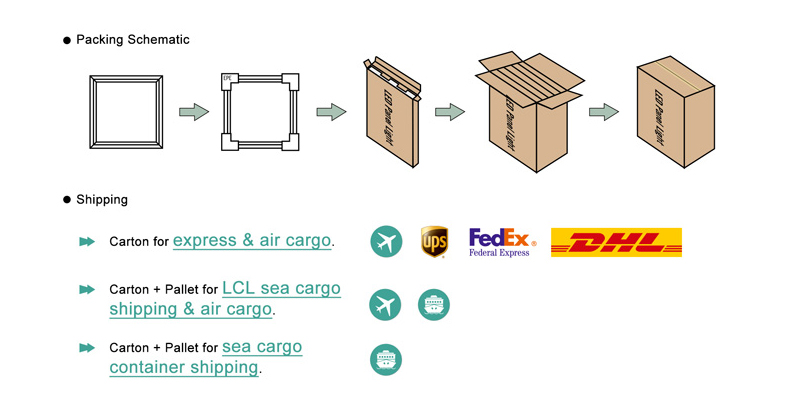

Packaging and Shipping

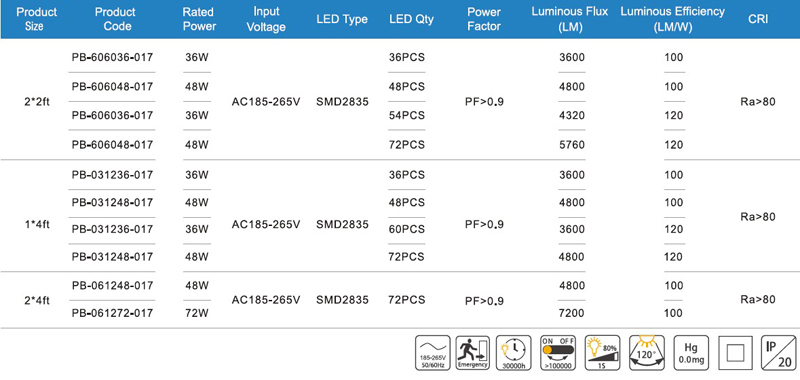

Specifications
