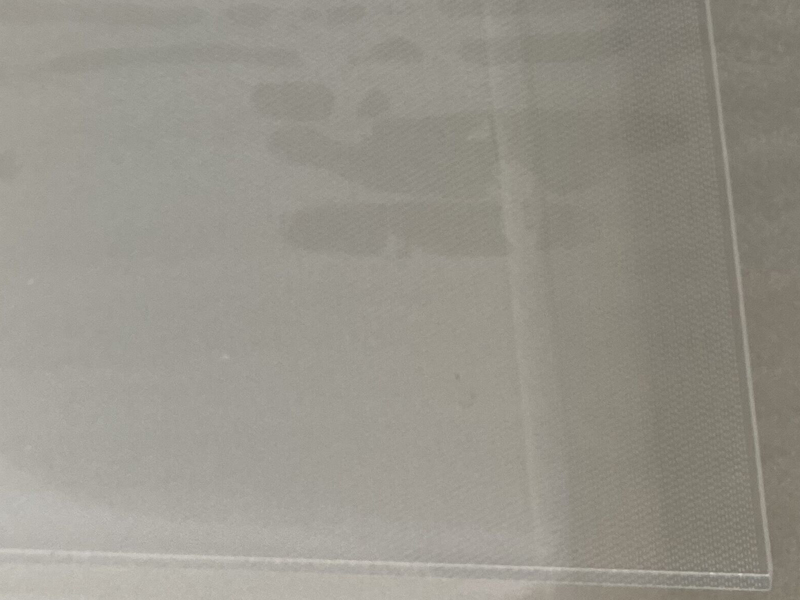

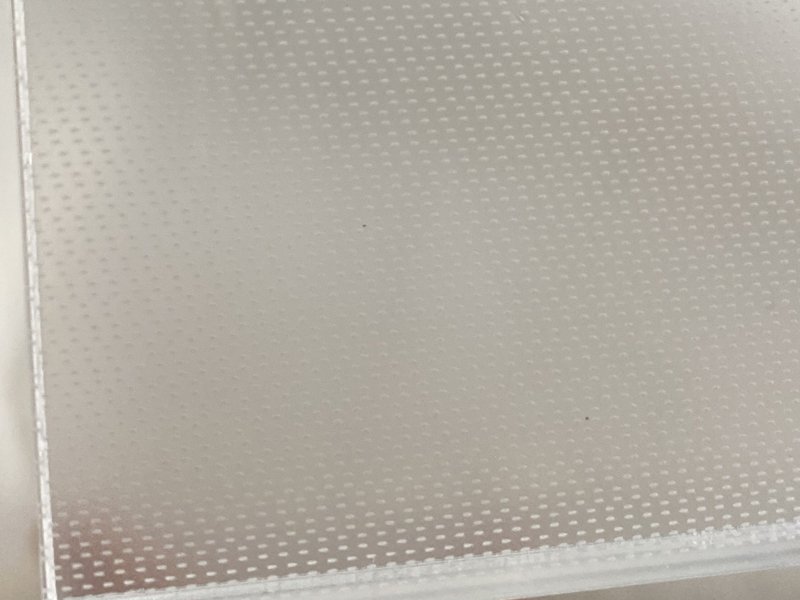

Acrylic Light Guide Plate for TV Backlight
Special machine processing LGP for TV backlight. Mass production each month.INQUIRE+- DESCRIPTION
- TEMPLATE
- PACKING DETAILS
- DOWNLOAD
Features
1. Clear, Transparency rate can go to over 92%.
2. Various color available, long-time lasting. Customized colors are welcome
3. Highly glossy, easy clean
4. Easy to mould. No-toxic acrylic sheet
5. Available application for indoor and outdoor advertising, decoration and so on
6. Density of acrylic sheet: 1, 200kg/cbm
7. Can be used for vacuuming, engraving, silk-screen printing, polishing, processing, etc
8. Strong surface hardness and good weather resisting propertySpecifications
Item Acrylic Light Guide Panel/Acryic LGP Size 300*300mm, 600*600mm 300*600mm, customized sizes Thickness 3-4-6mm Colors Clear with dots Density 1.2 g/cm3 Quality A Grade, can be used for advertising, lighting Material
LED, 1-6mm high transparent acrylic, Mitsubishi Certification SGS Logo silkscreen print, carving and laser MOQ 10 Pieces Payment T/T, 30% deposit, balance before delivery Packing Outer Cartons Delivery time 10-15 days Applications
1. Construction: show window, doors, light-absorpting shade, telephone booth.
2. Advertisement: lamphouse,signboard,indicator,display rack.
3. Vehicle: door and window of car and train.
4. Medical: infant incubator, many kinds of medical apparatus.
5. Civilian goods: bath room, art work, cosmetics, bracket.
6. Industrial: instruments and meters and protecting cover
7. Lighting: daylight lamp, ceiling lamp,lamp shade
8. TV backlightPhysical Properties
Specific gravity 1.19-1.20 Hardness M-100 Absorptivity of water (24h) 0.30% Tension Excellent Coefficient of Rupture 700kg/cm2 Coefficient of Elasticity 28000kg/cm2 Bending 90 degree Coefficient of Rupture 1.5kg/cm2 Coefficient of Elasticity 28000kg/cm2 Transmittance (parallel rays) 92% Full rays 93% Heat Distortion Temperature 100oc Ultimae Temperature of Continuous operation 80oc Thermoforming Ranges 140-180oc Insulation Strength 20V/mm - LED Strip
