Backlights Waterproof LED Strip
1. Waterproof glue covering, IP65 suitable for outdoor use 2. Secondary light distribution lens is used to achieve excellent light 3. Aluminum PCB with great heat dissipation 4. Customization availableINQUIRE+Backlights Waterproof LED Strip
Features
1. Waterproof glue covering, IP65 suitable for outdoor use
2. Secondary light distribution lens is used to achieve excellent light
3. Aluminum PCB with great heat dissipation
4. Customization available

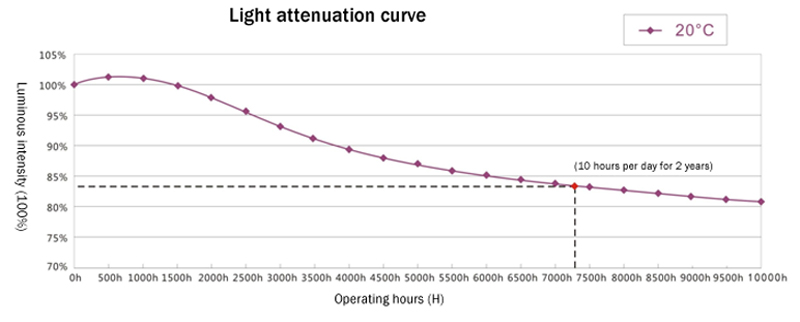

Light Attenuation Curve

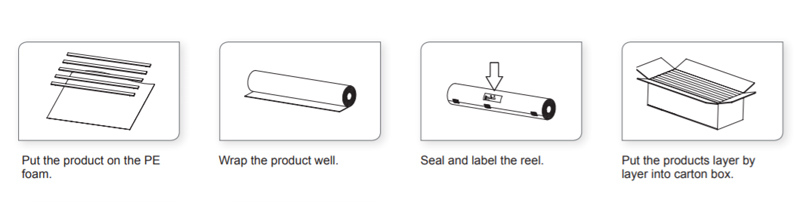

Packaging Diagram
FAQ
Q1. What is MOQ?
We can support you any quantity, including the sample order.
Q2. Can I get free samples?
Yes, we are glad to send you one type sample or mixed types of samples.
Q3. What is delivery time?
For our hot products, we have in stock. Other products takes around 5-8 days.
Q4. Can I also buy LED Power supply from you?
Yes, we are one stop provider of LED solutions, we can supply Mean Well led power
supply and other led transformers.
Q5. How can I get the best solution for light box?
Please advise the size and thickness of light box you would like, we will give you best recommendation.Specification
Item
Parameter
Unit
Product Size
600*27*10
mm
LED Type
3030
-
LED QTY
6
PCS
LED Spacing
100
mm
Input voltage
DC 12±0.5
V
Input Current
500±10%
mA
Power
6 ±10%
W
Luminous Flux
540
lm
Lens Beam Angle
170
Degree
Color Temperature
6000-6500K
6000-6500K
CRI
>80
-
Working temperature
-25~+45
℃
Storage temperature
-25~+60
℃
Level of protection
IP65
-
Certificates
CE, RoHS, UL
-
Warranty
5
years
Applications
Airport light box, metro light box, railway station light box, bus station light box, parking lot light box, exhibition light box, ceiling roof lights, building decorative lighting, billboard advertising signs.
Recommended depth 6-25cm internal single side and double-sided light boxes.
