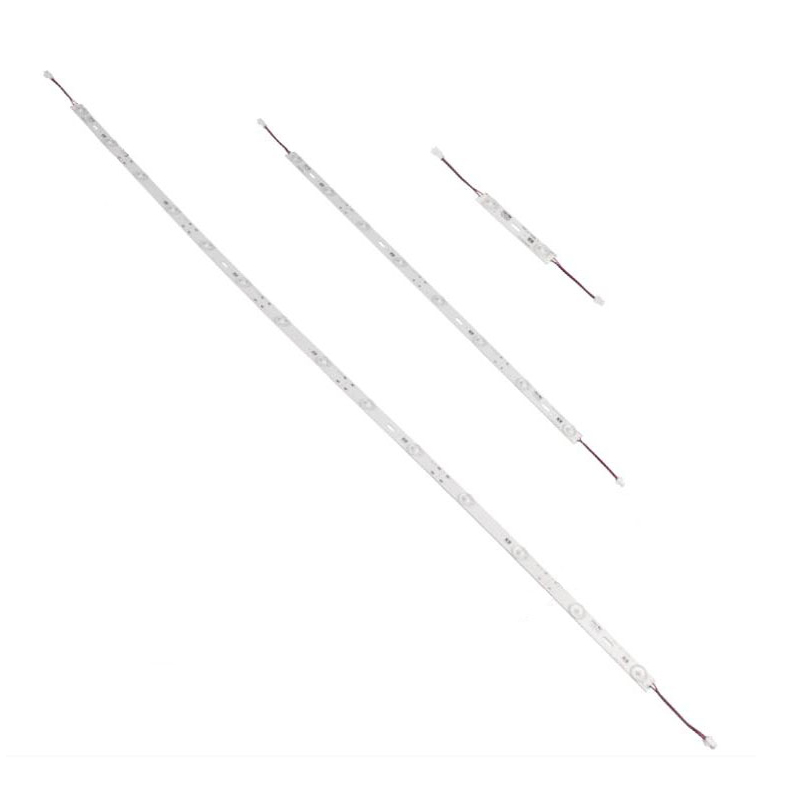

LED Backlit for Low Profile Frame
With the lighting technology of diffused lens, this LED rigid light strip is great as backlit for low profile frame such as 4cm fabric frame systems.INQUIRE+LED Backlit for Low Profile Frame

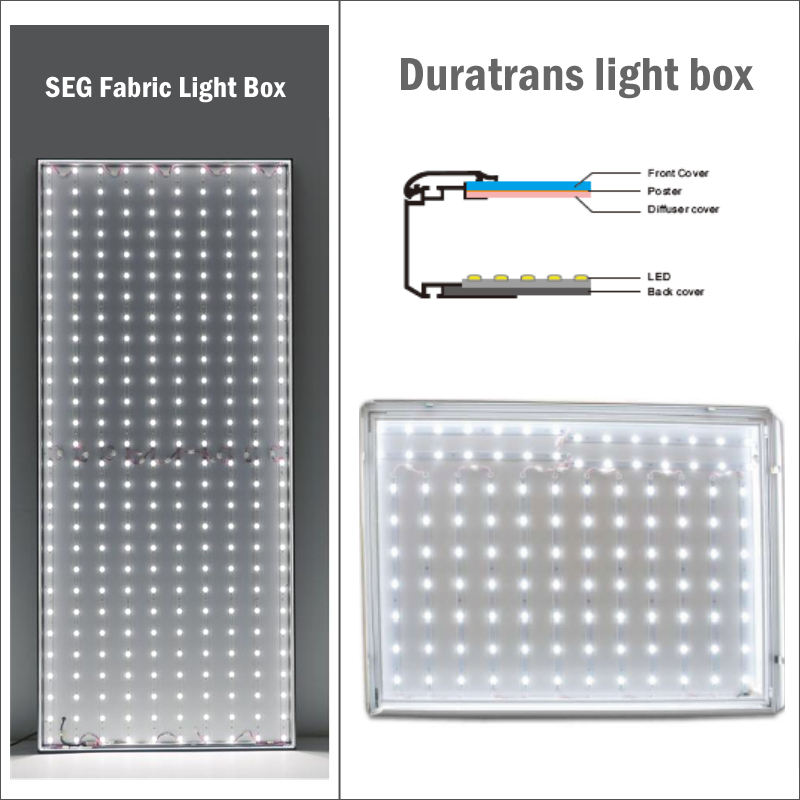

This LED rigid light strip is great as backlit for low profile frame such as 4cm fabric frame systems. With the lighting technology of diffused lens, the illumination is perfect without any light spots from any angle, so it is ideal for SEG signage, ceiling fabric lighting or decoration.
Features
1. Adopt high power 9V 2835 LED, one segment to cut per 2 LEDs

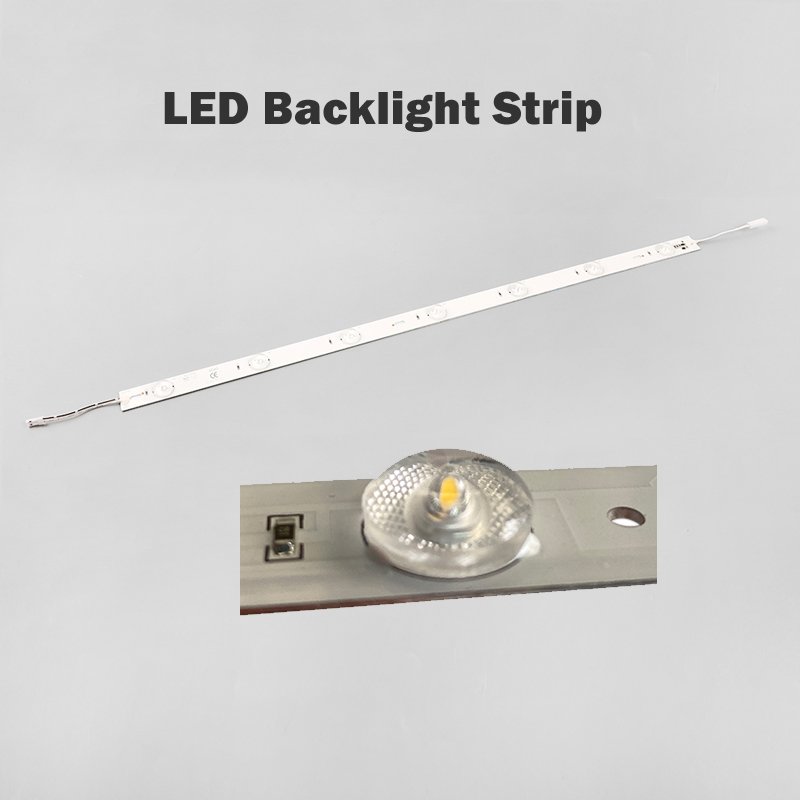

2. Secondary lens design for uniform light
3. Use connection terminals (other connectors optional) for easier installation
4. 170 deg wide view angle
5. 1.6mm aluminum base for good heat dissipation

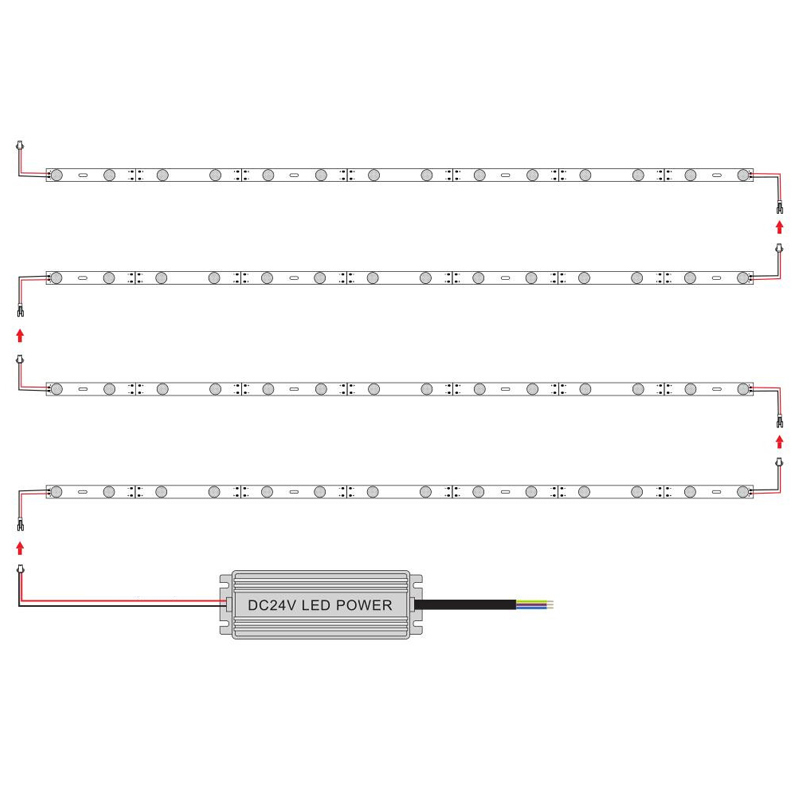

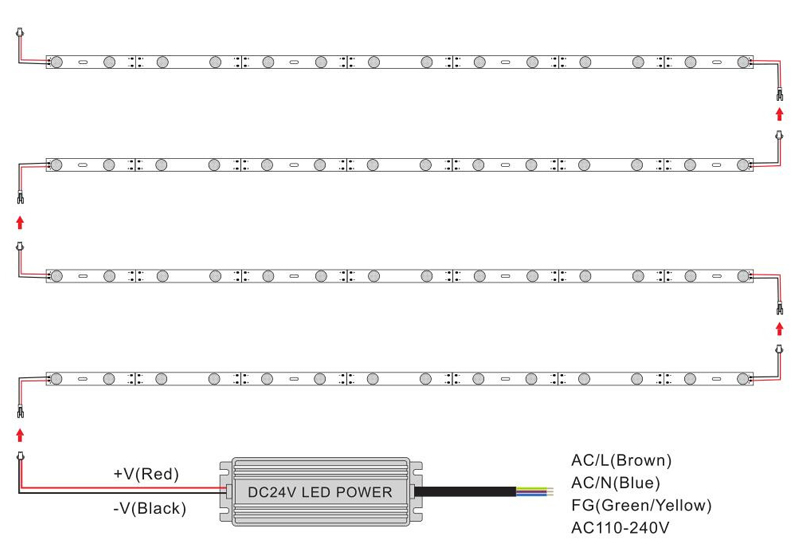

Installation and Connection
Fix by self-adhesive tape or screws

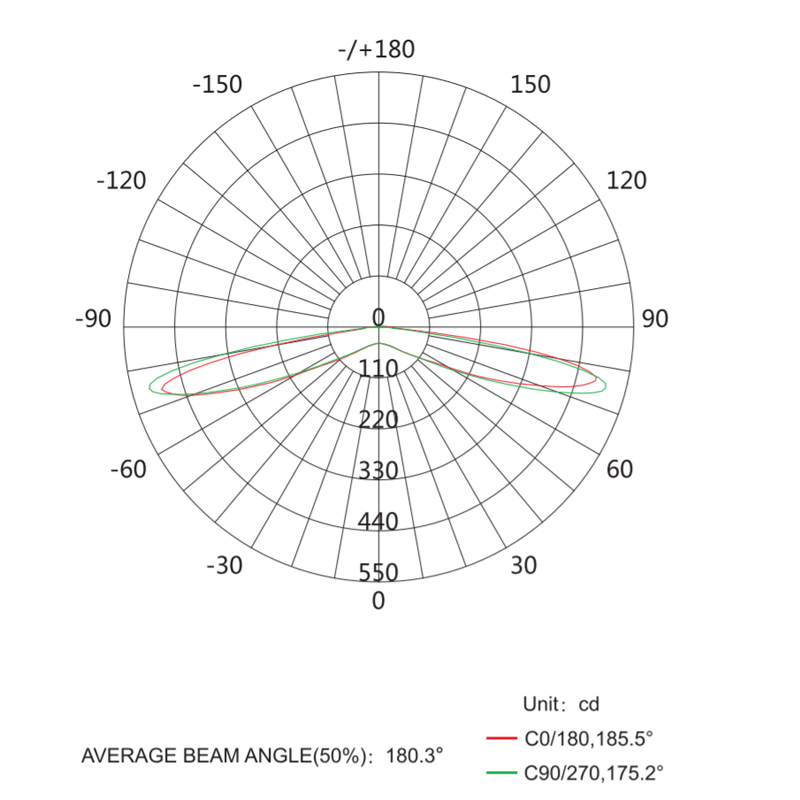

Light Distribution Curve

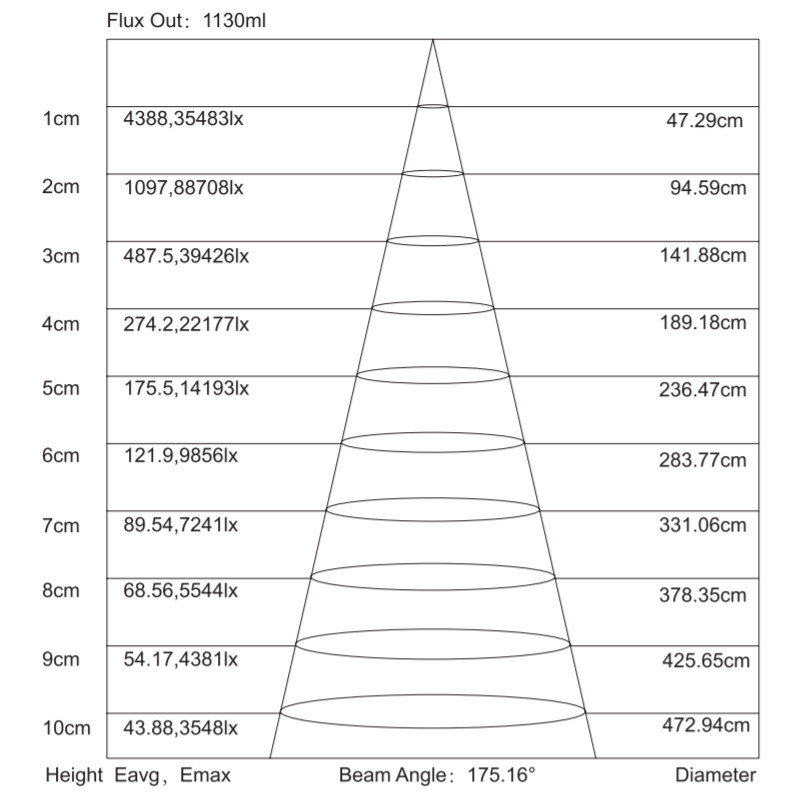

Effective Average Illumination

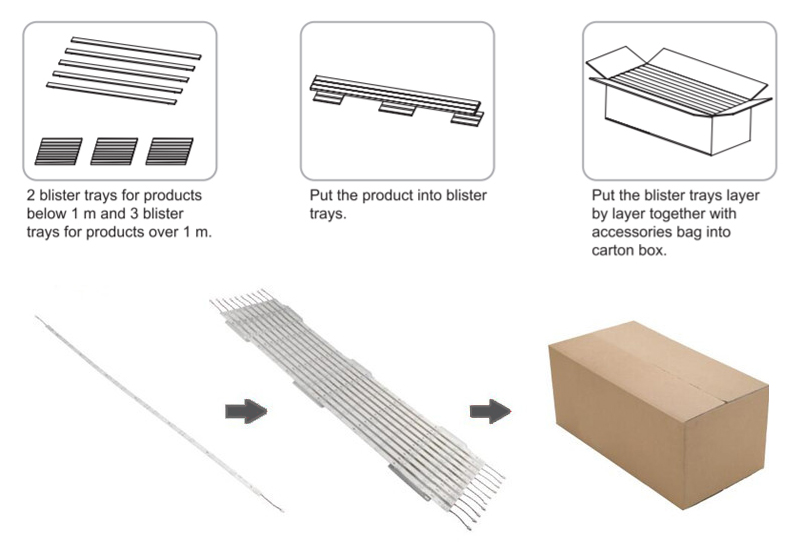

Illustrated Packaging
Specification
Item
Parameter
Unit
Product Size
900*16.8*7
mm
LED Type
OSRAM 2835
-
LED QTY
18
PCS
LED Spacing
50
mm
Input voltage
DC 24±0.5
V
Input Current
500±10%
mA
Power
12 ±10%
W
Luminous Flux
1080
lm
Lens Beam Angle
170
Degree
Color Temperature
6000-6500K
6000-6500K
CRI
>80
-
Working temperature
-25~+45
℃
Storage temperature
-25~+60
℃
Level of protection
IP33
-
Certificates
CE, RoHS, UL
-
Warranty
5
years
