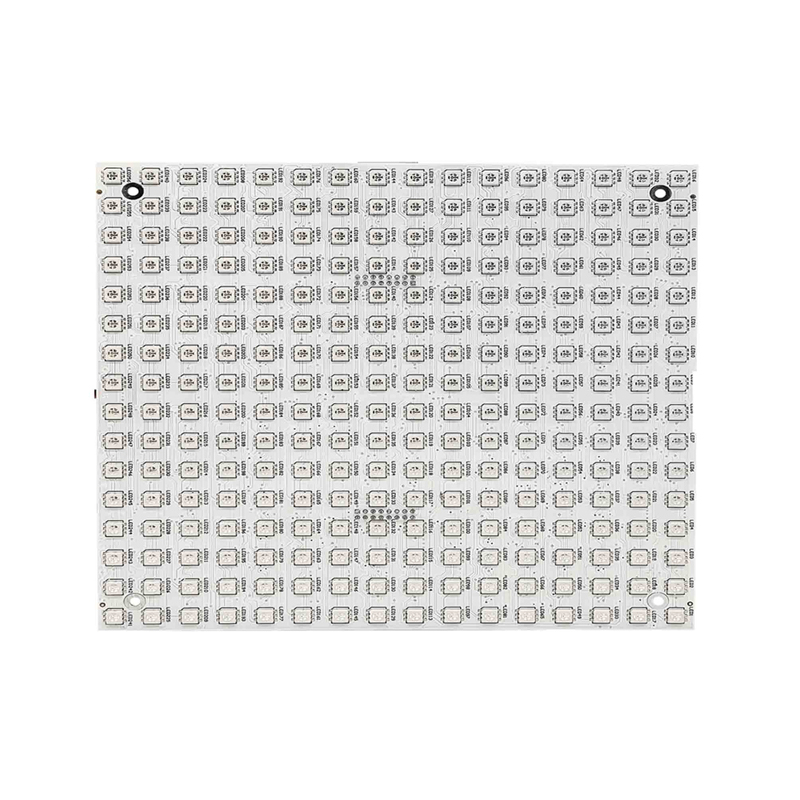

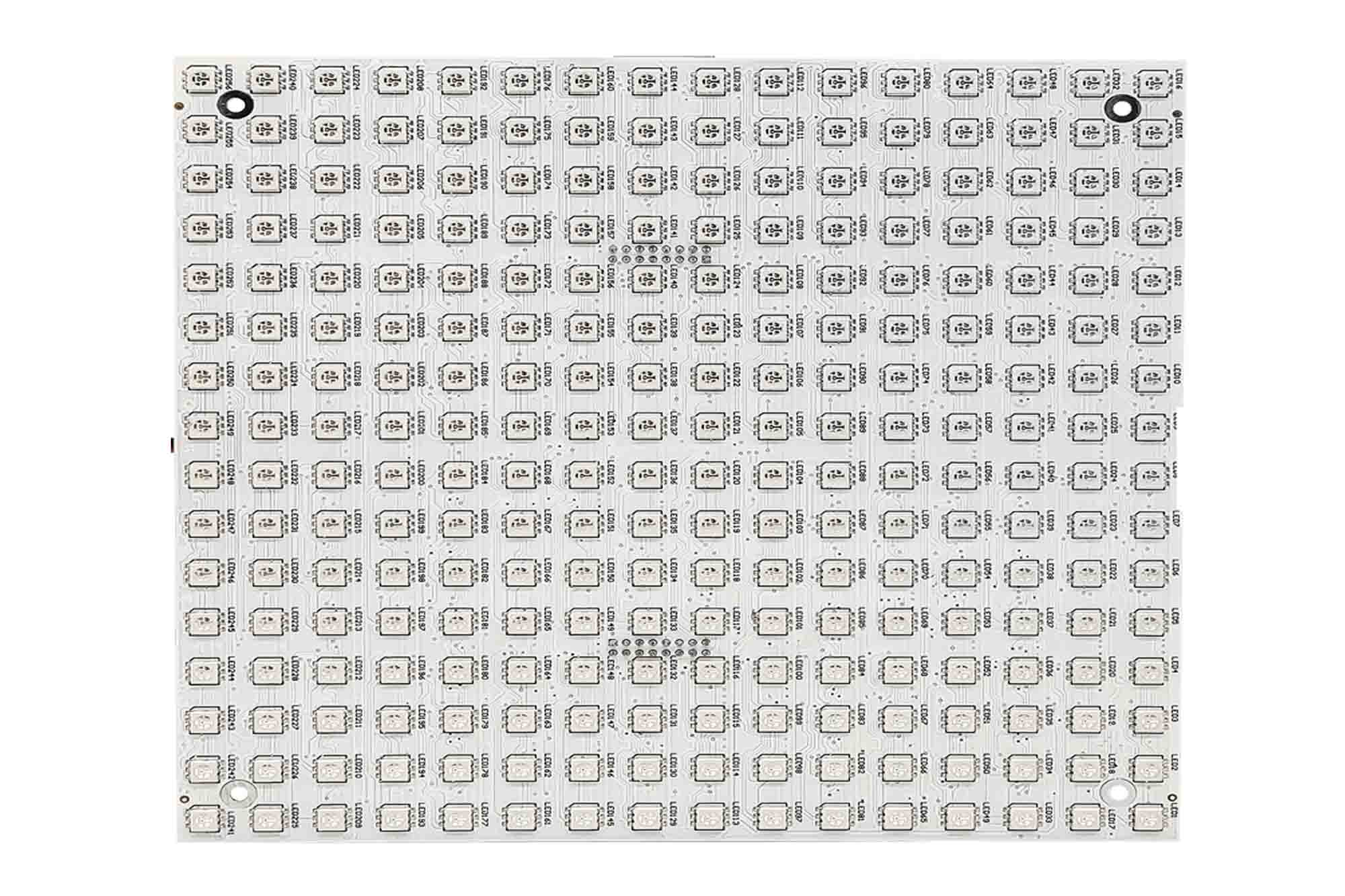

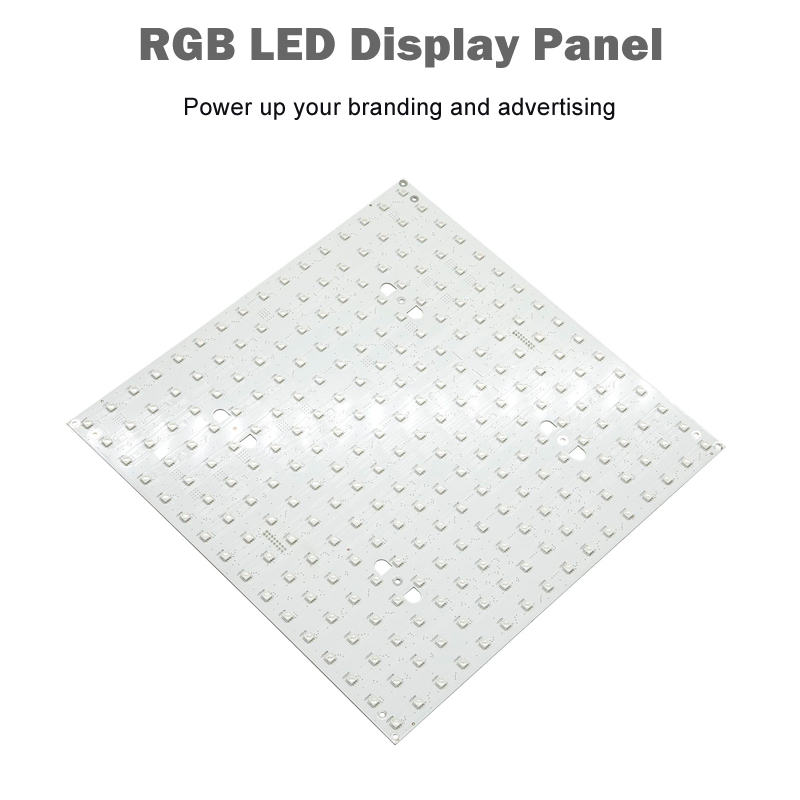

P10 RGB LED Module Backlight Motion Display
This P10 RGB LED module is ideal as SEG fabric programmable backlight to offer limitless creative options for a dynamic solution.INQUIRE+- DESCRIPTION
- TEMPLATE
- PACKING DETAILS
- DOWNLOAD
Motion Display P10 RGB LED Module Backlight

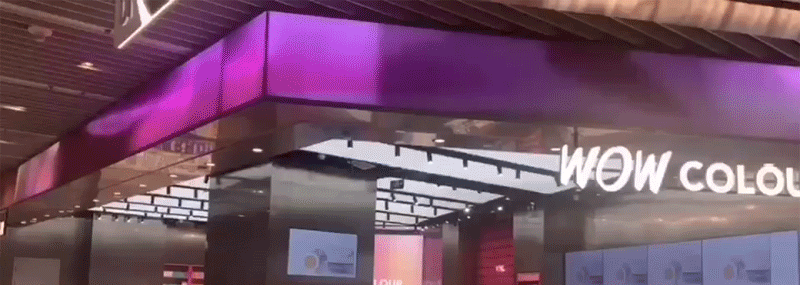

This P10 RGB LED module is ideal as SEG fabric programmable backlight to offer limitless creative options for a dynamic solution. The perfect combination of dynamic LED and traditional light box creates motion display with an entirely different look and feel on the exact same graphic. It is an animated visual with any motions such as shooting star, waterfall, drifting clouds, rainfall, flying snow, lightning, flashing letters, highlights, etc. Your brands stand in the spotlights without compromising on imagination and originality.
Features
1. Full color backlight display, stopping power grows into playing power, giving interactive experiences.
2. Better picture quality than display screen with less cost
3. Low-power consumption with accurate control
4. The distance of the panel is 2-3cm away from the fabric
5. Modular design, easy to install and maintain
Application
Dynamic light box backlight
Packing Diagram
2D Drawing
Specification
Item
RGB LED module panel
Display color
RGB
Module size
320*320mm
LED pitch
10mm
Display resolution
≤ 32*32
Optimal visibility distance
10-20M
Grey level
256 grade
Visual range
≤ 200m
Brightness
≥ 1000cd/㎡
Display density
10,000 pixel/㎡
Lifespan
>100,000hrs
