Tool Free Connection Lattice LED Backlight

PRODUCTS

Position： Home » PRODUCTS »LED Strip »Backlit LED Rigid Bar

This tool free connection lattice LED backlight can be used with built-in slim LED driver for 5CM plain white fabric face light box. 10~15CM LED strip spacing is suggested to use according to shallow setback distance and brightness requirements...

INQUIRE+

DESCRIPTION
TEMPLATE

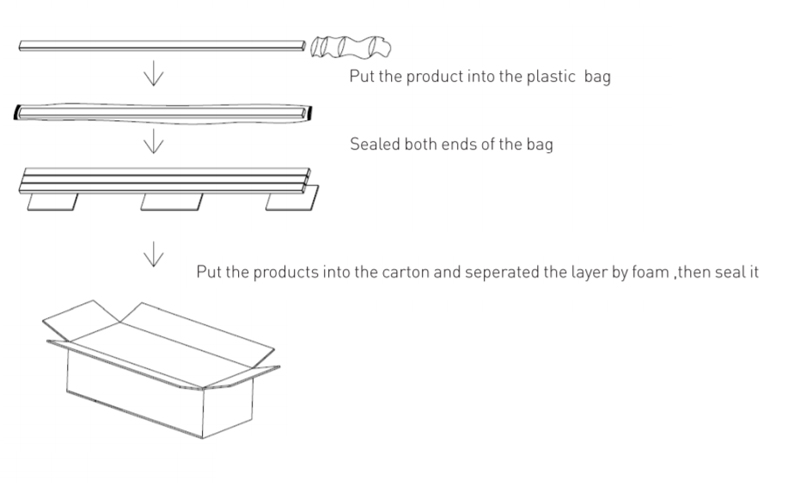

PACKING DETAILS
DOWNLOAD

Lattice LED Backlight Tool Free Connection

Features

1. Tool free connection without soldering

2. Small volume for economical shipping

3. Easy assembly and installation

4. Low current load for high power LED, high efficiency, low heat generation

5. Standard 160mm per segment to cut for plug and play connection

6. OEM and ODM service available

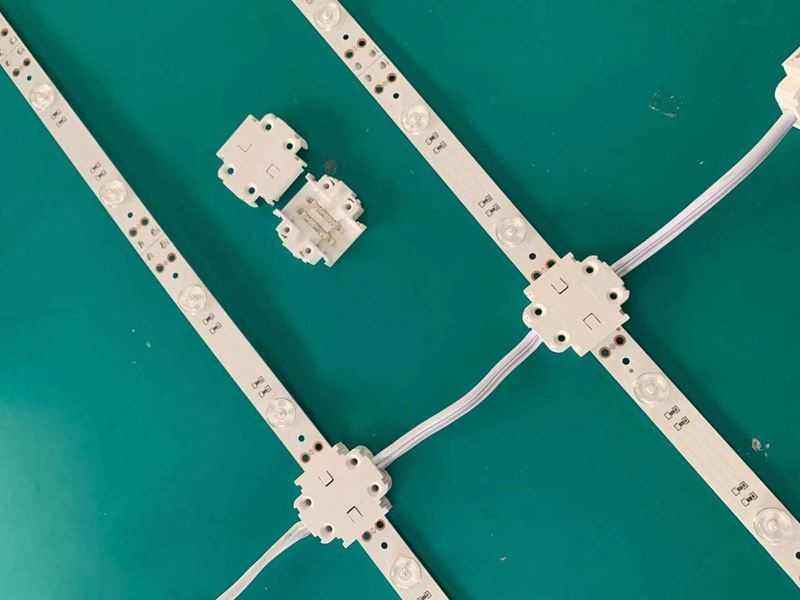

Backlit LED Strip.jpg

This backlight LED strip can be used with built-in slim LED driver for 5CM plain white fabric face light box with great light effect. 10~15CM LED strip spacing is suggested to use according to shallow setback distance and brightness requirements.

Item	Parameter	Unit
Product Size	96016.87	mm
LED Type	OSRAM 2835	-
LED QTY	12	PCS
LED Spacing	80	mm
Input voltage	DC 24±0.5	V
Input Current	500±10%	mA
Power	12 ±10%	W
Luminous Flux	1080	lm

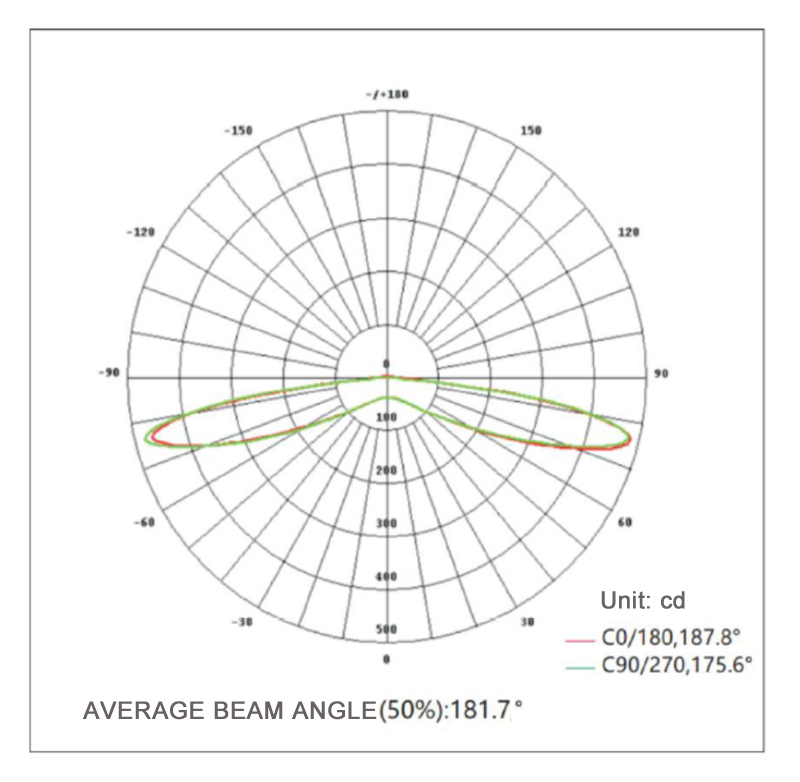

Lens Beam Angle	170	Degree
Color Temperature	6000-6500K	6000-6500K
CRI	>80	-
Working temperature	-25~+45	℃
Storage temperature	-25~+60	℃
Level of protection	IP33	-
Certificates	CE, RoHS, UL	-
Warranty	5	years
