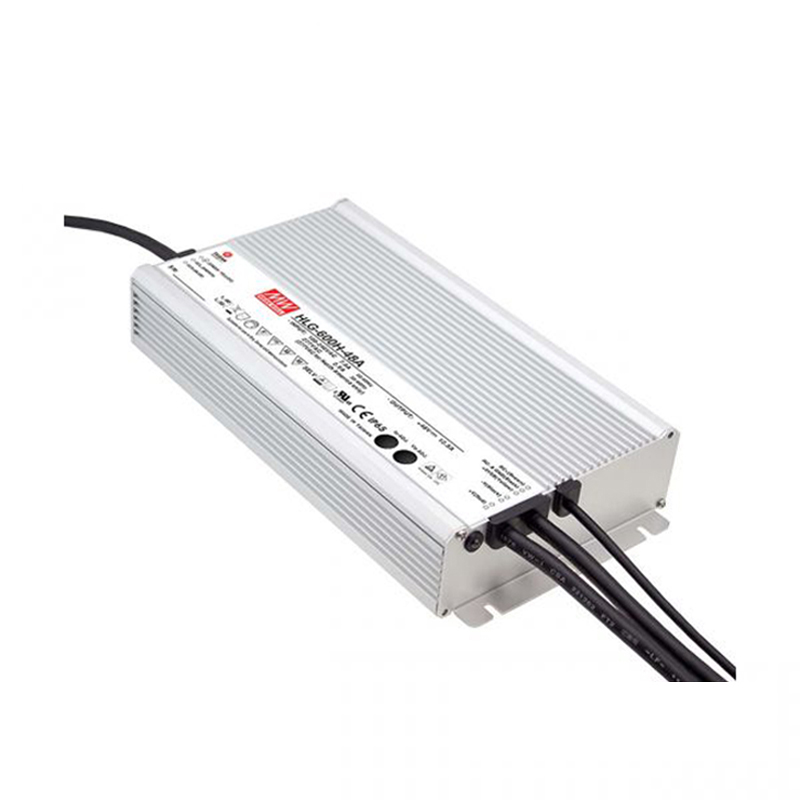

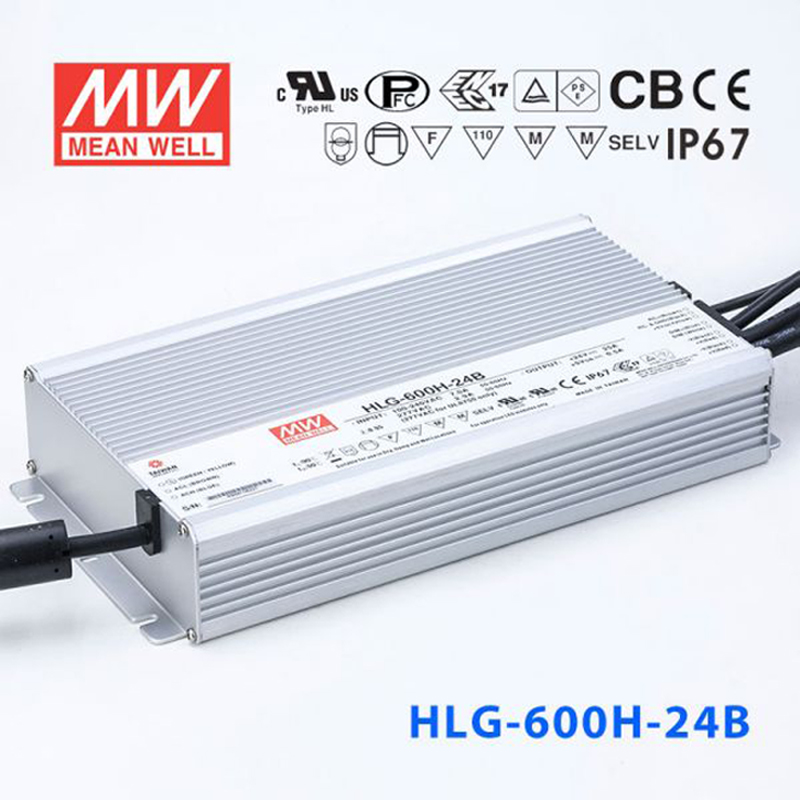

24V LED Transformer Big Power Supply
MeanWell HLG series power supply is AC to DC LED transformer featuring the dual mode constant voltage and constant current output. It operates from 90~305V AC and offers models with different rated power ranging from 40W to 600W...INQUIRE+24V LED Transformer Big Power Supply
Features
1. Constant voltage and constant current mode output

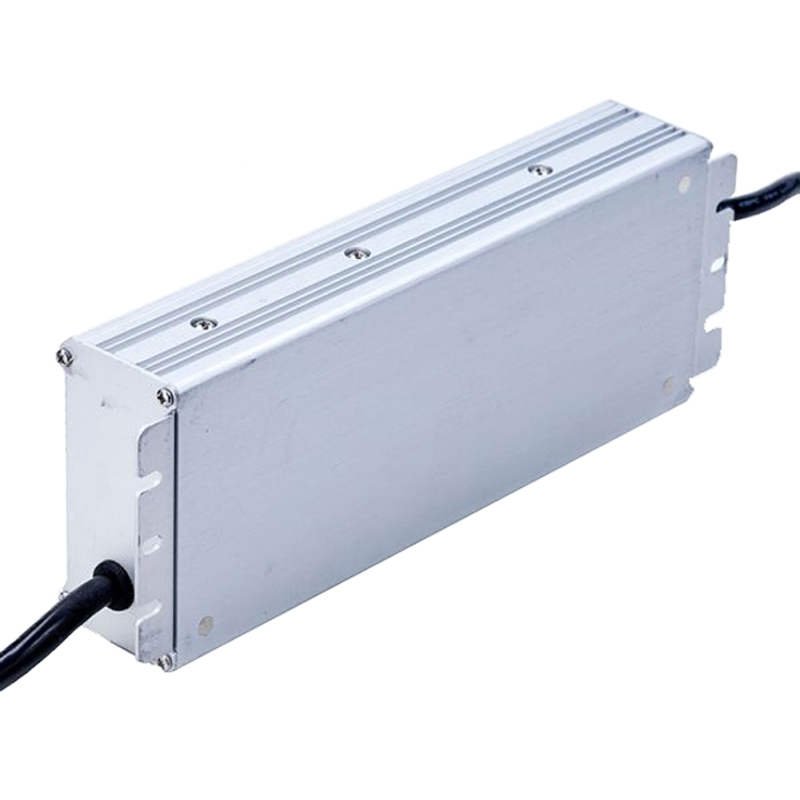

2. Metal housing with class 1 design
3. Standby power consumption <0.5W at remote off
4. IP67/IP65 rating for indoor or outdoor installations

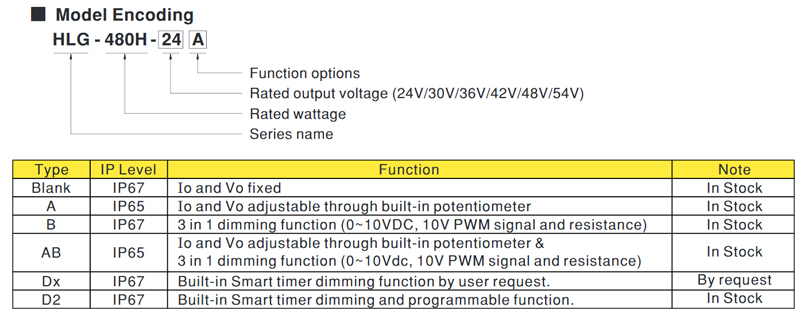

5. Function options: output adjustable via potentiometer, 3 in 1 dimming (for B/AB type, dim-to-off)
6. Typical lifetime >62000hrs
7. 7 years warranty
MeanWell HLG series power supply is AC to DC LED transformer featuring the dual mode constant voltage and constant current output. It operates from 90~305V AC and offers models with different rated voltage ranging between 12V and 54V, rated power ranging from small 40W to big 600W.
Specifications
MODEL

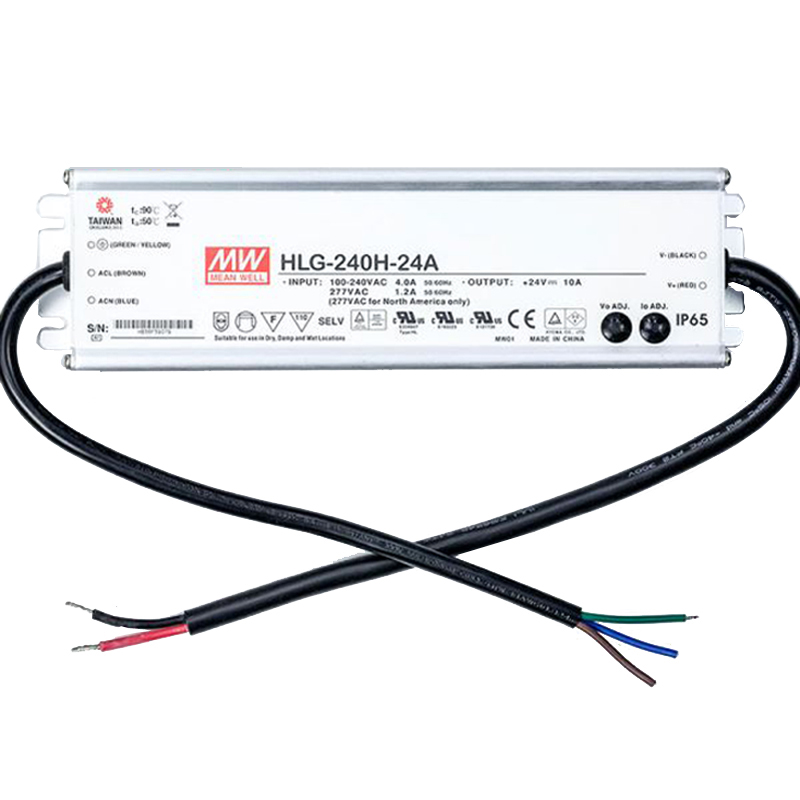

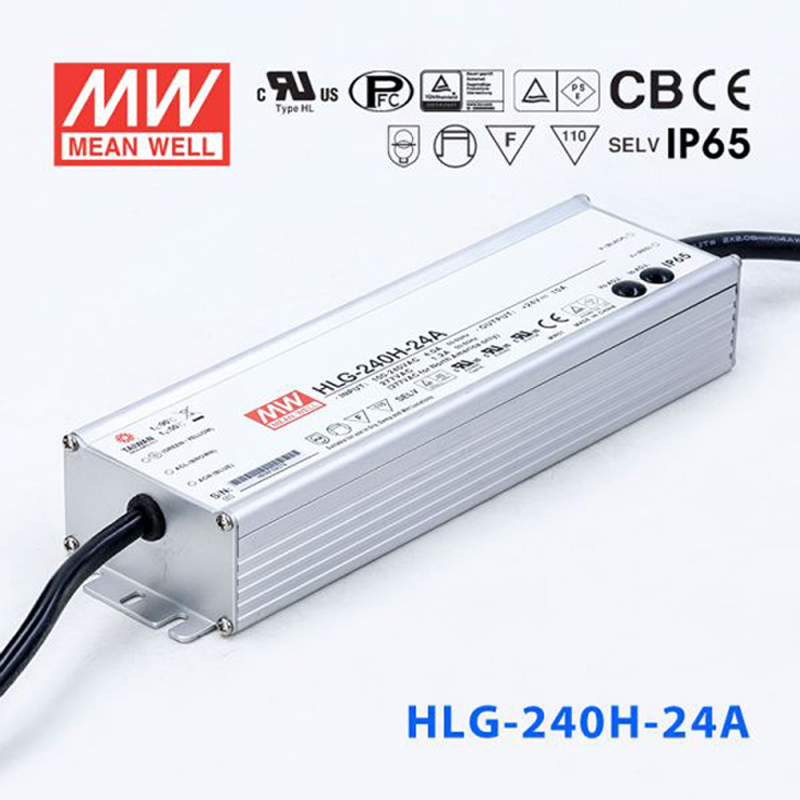

HLG-240H-24A/B

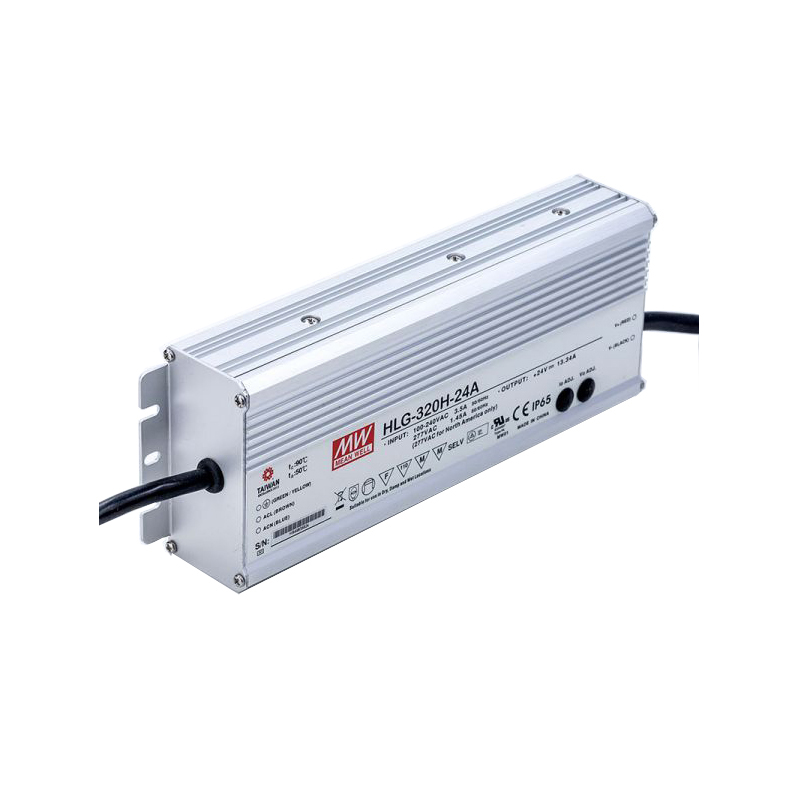

HLG-320H-24□
HLG-480H-24□
HLG-600H-24□
OUTPUT
DC VOLTAGE
24V
24V
24V
24V
RATED CURRENT
10A
13.34A
20A
25A
RATED POWER
240W
320.16W
480W
600W
INPUT
VOLTAGE RANGE
90~305V AC, 127~431V DC (Please refer to "STATIC CHARACTERISTIC" section)
Mhz
47~63 Hz
OTHERS
DIM.
244.2*68*38.8mm(L*W*H)
252*90*43.8mm(L*W*H)
262*125*43.8mm(L*W*H)
280*144*48.5mm(L*W*H)
PACKING
1.3Kg;12pcs/16.6Kg/0.84CUFT
1.88Kg;8pcs/16Kg/0.92CUFT
2.8Kg;4pcs/12.2Kg/0.55CUFT
3.9Kg;4pcs/16.6Kg/0.9CUFT
Due to the high efficiency up to 93.5%, with the fanless design, the entire series LED transformer is able to operate from -40deg~+90deg case temperature under air convection. The design of metal housing and IP67/IP65 ingress protection level allows this series LED transformer to fit both indoor and outdoor applications. It is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.
Application
LED street lighting
LED high-bay lighting
Parking space lighting
LED fishing lamp
LED greenhouse lighting
The big power supply such as 24V 320W, 480W or 600W LED transformer is usually used for large lightbox, large format space lighting...
