Top Mounting Lightbox Menu Board
This top mounting lightbox is a good hanging unit for point of sale in front of check-out counter. It can be installed in both landscape and portrait formats quickly and used to display menu, health and safety information, general notices and guides, etc.INQUIRE+- DESCRIPTION
- TEMPLATE
- PACKING DETAILS
- DOWNLOAD
Menu Board Top Mounting Lightbox
This top mounting lightbox is a good hanging unit for point of sale in front of check-out counter. It can be installed in both landscape and portrait formats quickly and used to display menu, health and safety information, general notices and guides, etc.
Features
1. Elegant and energy efficient
2. Spare parts are available to order separately
3. Uniform bright illumination for graphic to be easily read by visitors
4. Standard sizes available: A1, A2, A3, A4
5. Change the graphics in seconds – just slide in and out of the panel
6. Orientations: Portrait or Landscape, rotatable
7. Three frame colors available : silver, black, gold
8. Single side or A4, A3, A2 double side display, multi-angle display
9. Full 360 degree + 180 degrees + 40 degrees rotation, single side or beveled double side

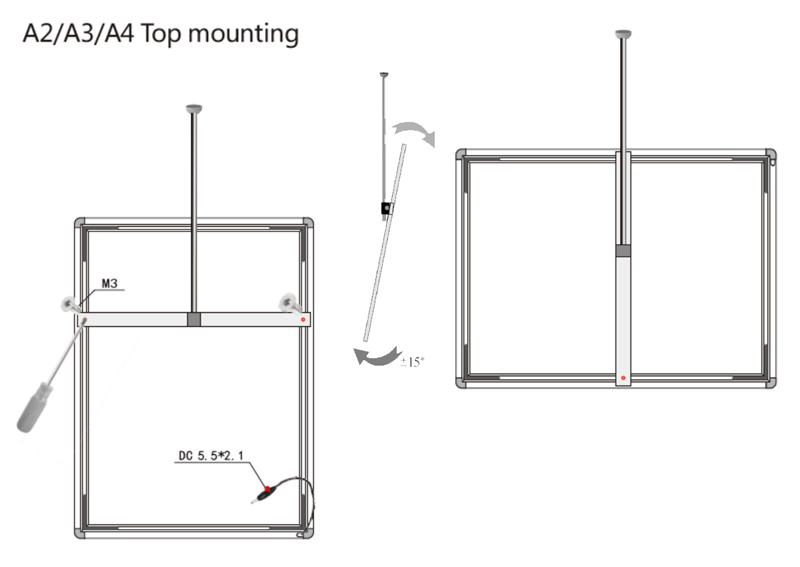

Single Unit Display

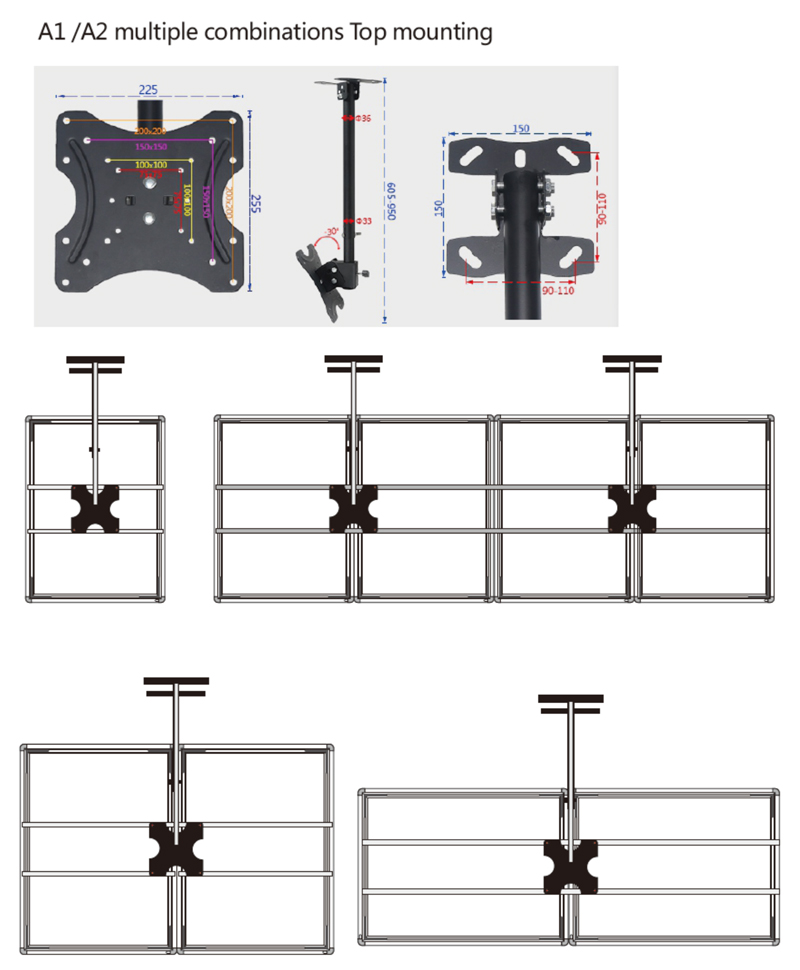

Multiple Unit Combination
Specifications
Item
Frame Size
Film Size
Power(W)
PACKAGE
(mm)
(mm)
Box
Weight
Dimensions
PCS/Box
KGS
CM
Lightbox menu board
A4
225*304
210*297
6
20
11
42*37*32
A3
312*427
297*420
9
20
21
49*42*40
A2
435*601
420*594
13
20
40
66*42*53
A1
605*850
594*841
25.8
10
43
98*42*67

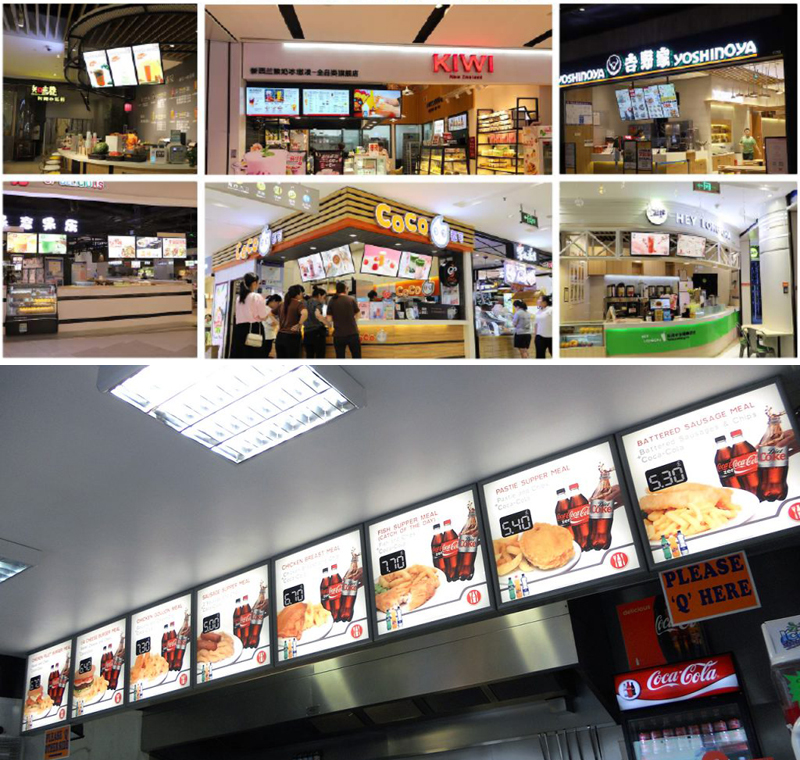

Applications
