Built in Class 2 Strip Power Supply

Introduction

MEAN WELL SLD series Strip Power Supply is AC DC LED driver featuring the dual modes constant voltage and constant current output. It operates from 110~305V AC and offers models with different rated voltage ranging between 12V and 56V, rated power 50W and 80W. It is Class 2 power supply when rated current is no bigger than 5A.

The strip LED power supply, we also call it linear LED driver, slimline LED driver, slim LED power supply, featuring low profile and linear housing.

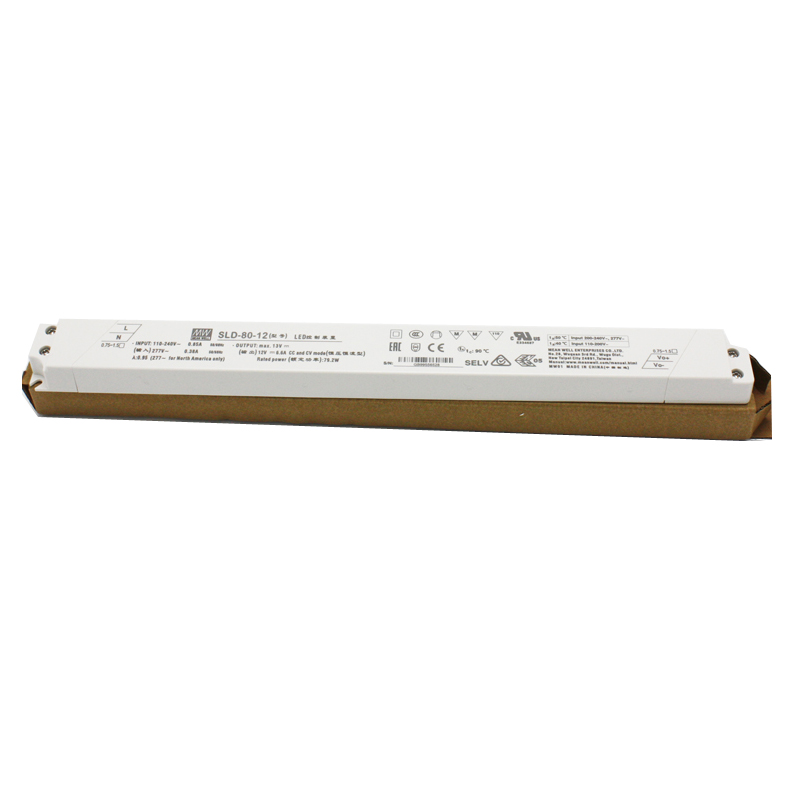

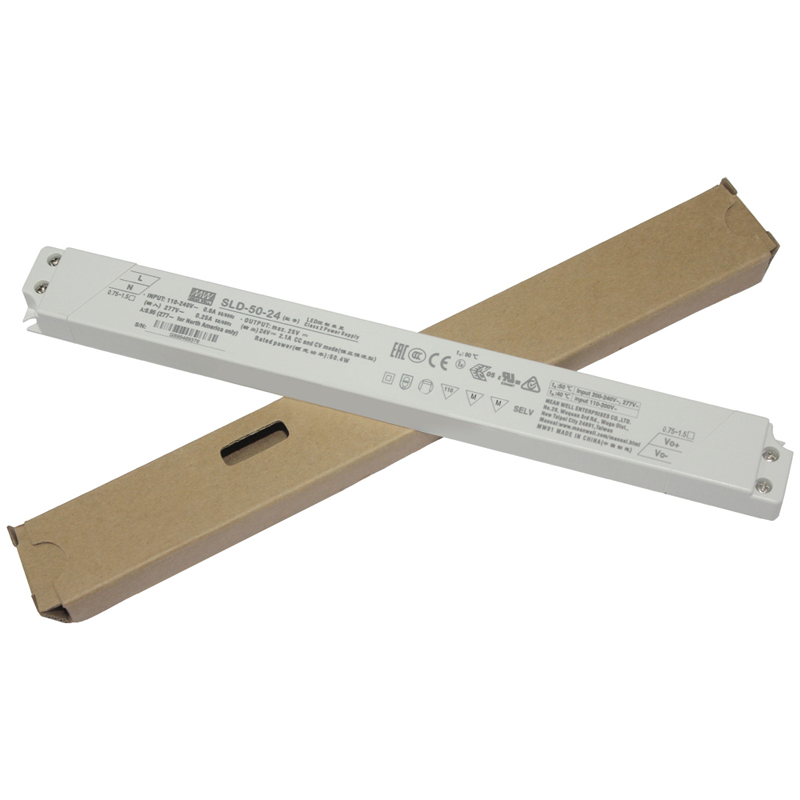

Real Picture, Certificates and International Power Cord Options

Features

1. Constant Voltage and Constant Current mode output

2. Wide input range 110-305V AC with PFC function

3. Compliance with EN61347 regulation

4. Class 2 / II power unit ( Rated current < 5A)

5. Slim and Linear housing design

6. No load power consumption <0.5W

7. Multiple protections: Over current, short circuit, over voltage, over temperature

8. 3 years warranty
