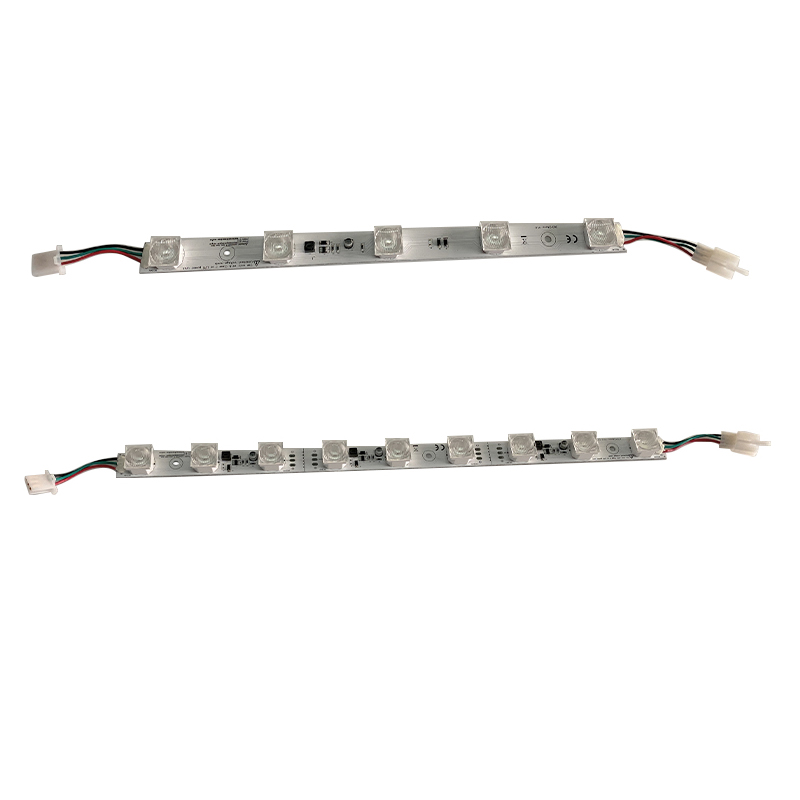

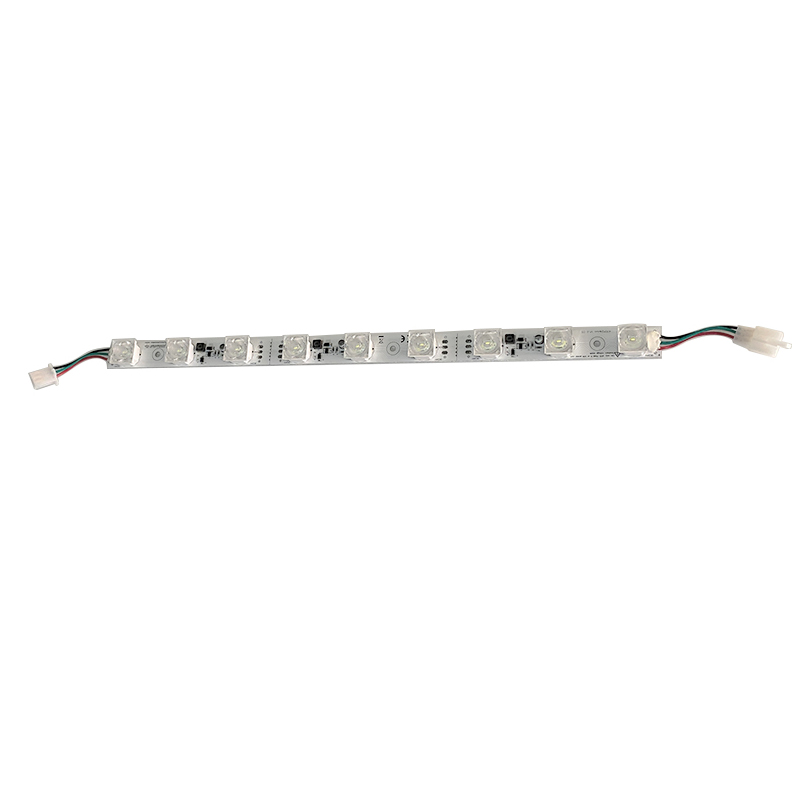

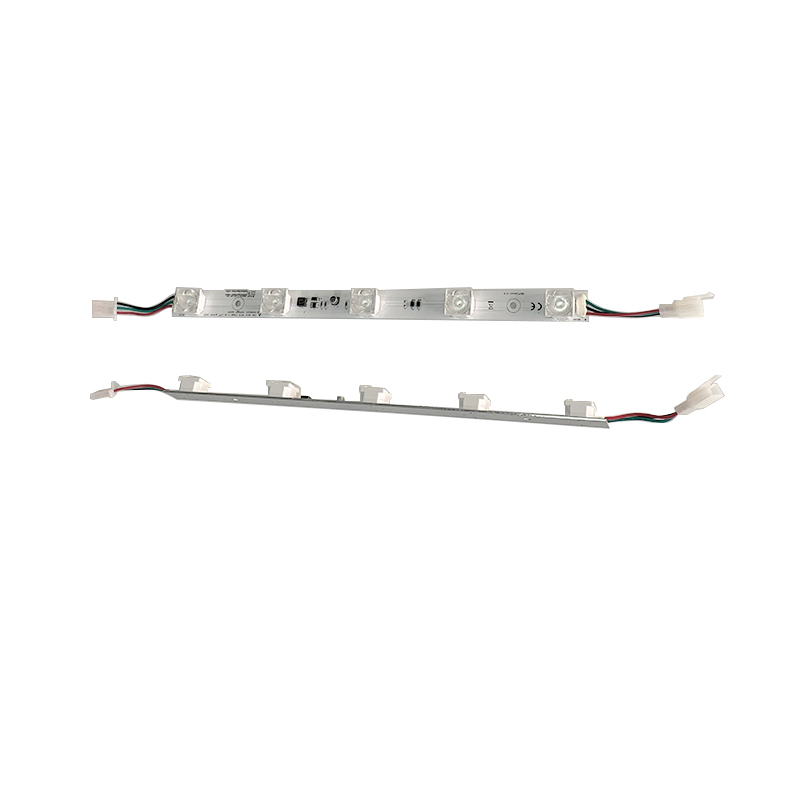

LED Module Edge Lights
High power CREE XPG LED strip with good secondary optics, 8 *25 double angle design. Great for single sided SEG frames in depth 6-20CM, lightbox size < 2500mm.INQUIRE+Super Bright LED Module Lightbox Edge Lights
Features
1. 3535 high rate LED, CREE XPG LED

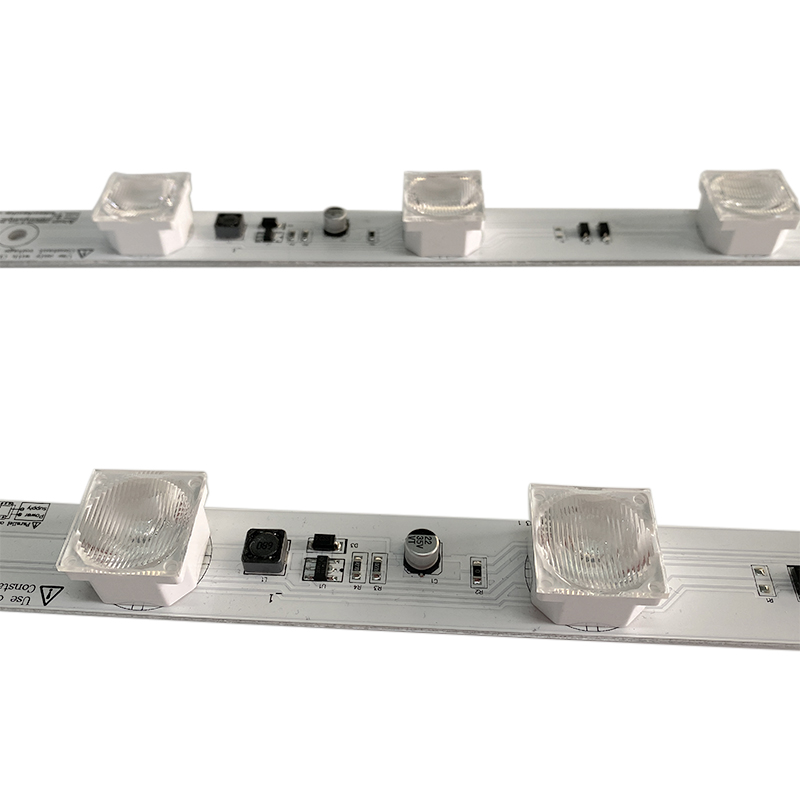

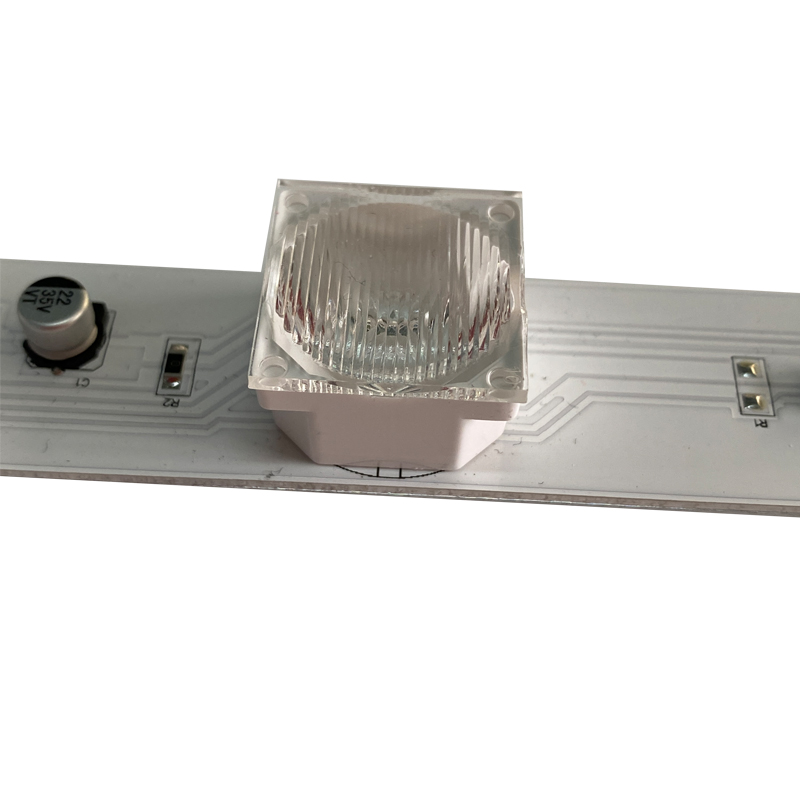

2. Good secondary optics, 8 *25 double angle design
3. Constant current design, long service life and low failure rate
4. 2mm PCB thickness, good heat conductivity

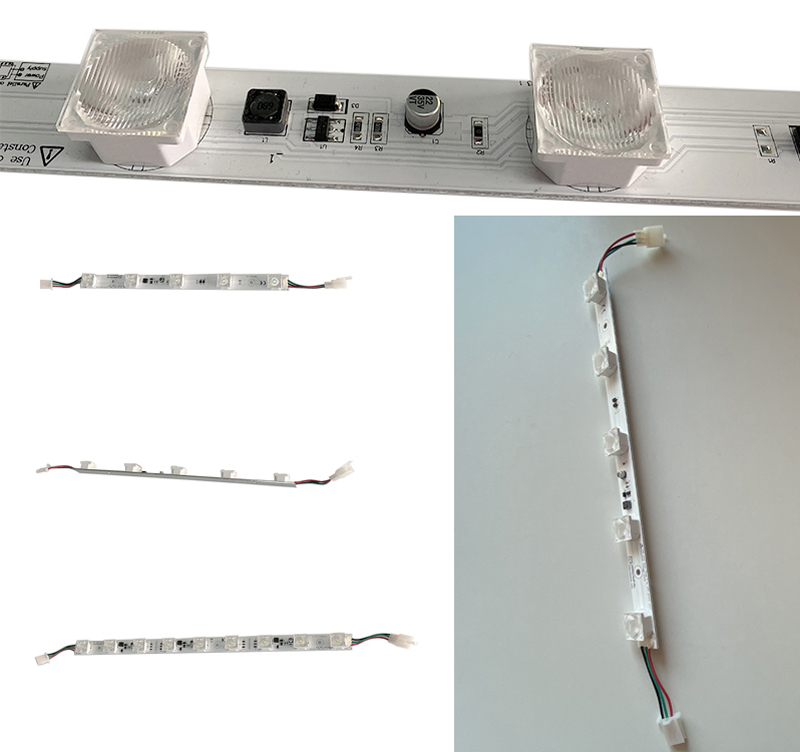

Real Pictures

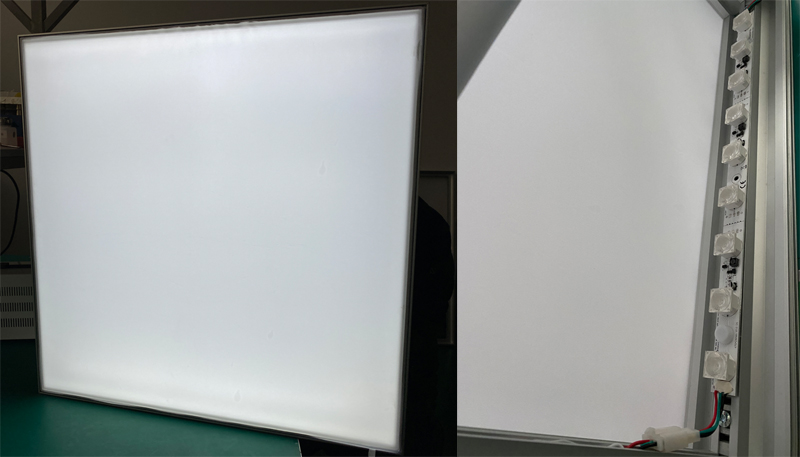

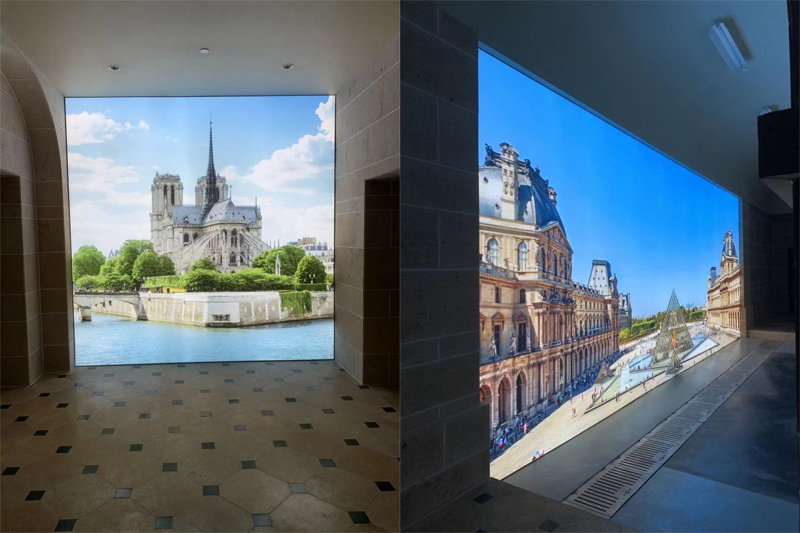

Application
Packing Dimensions
Part length
（mm）
Carton size
（CM）
Quantity
（PCS）
G. W.
（Kg）
Net weight
（Kg）
300
59*49*38
300
25
16
360
59*49*38
300
28
18
470
59*49*38
200
27
17 Basic Specifications
Part Length
Input Voltage
Power/pc
Luminous Flux(Lux)
LED Type
Color
LED Qty/pc
Dimension(L*W*H)
Bean Angle
300mm
24V DC
15±10%
1600±10%
SMD 3535
W
5pcs
300*24*15mm
8*25°
360mm
24V DC
15±10%
1600±10%
SMD 3535
W
5pcs
360*24*15mm
8*25°
470mm
24V DC
27±10%
2970±10%
SMD 3535
W
9pcs
470*24*15mm
8*25°
