Position： Home » PRODUCTS »Lighting Fixture »LED Flat Panel

40W 2x2 2x4 LED Panel Lights with ultra thin design, simple and stylish. Comply with UL, DLC, SAA, TUV-GS, CE requirements. Warranty: 5 years

INQUIRE+

DESCRIPTION
TEMPLATE

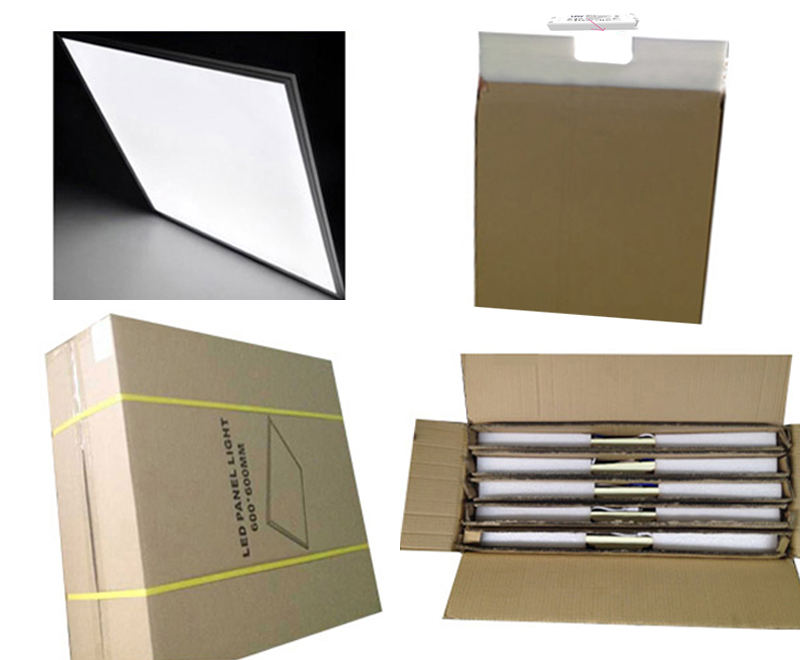

PACKING DETAILS
DOWNLOAD

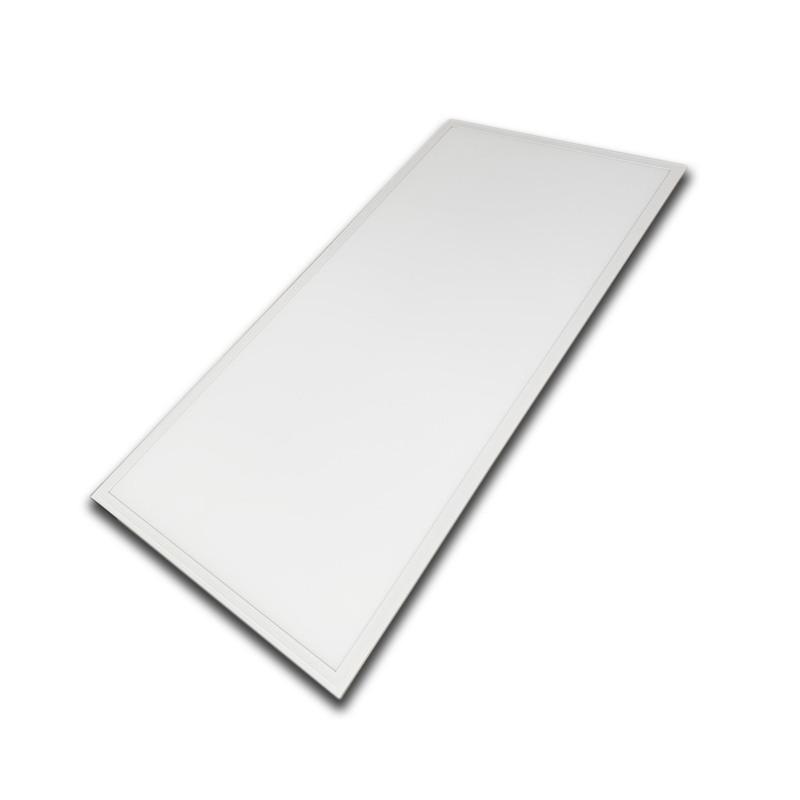

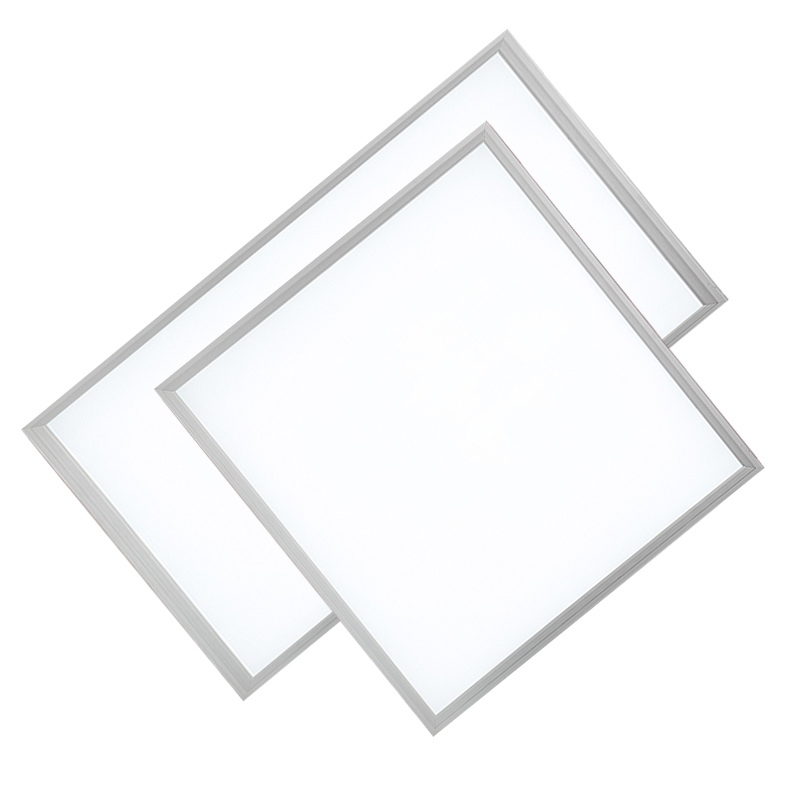

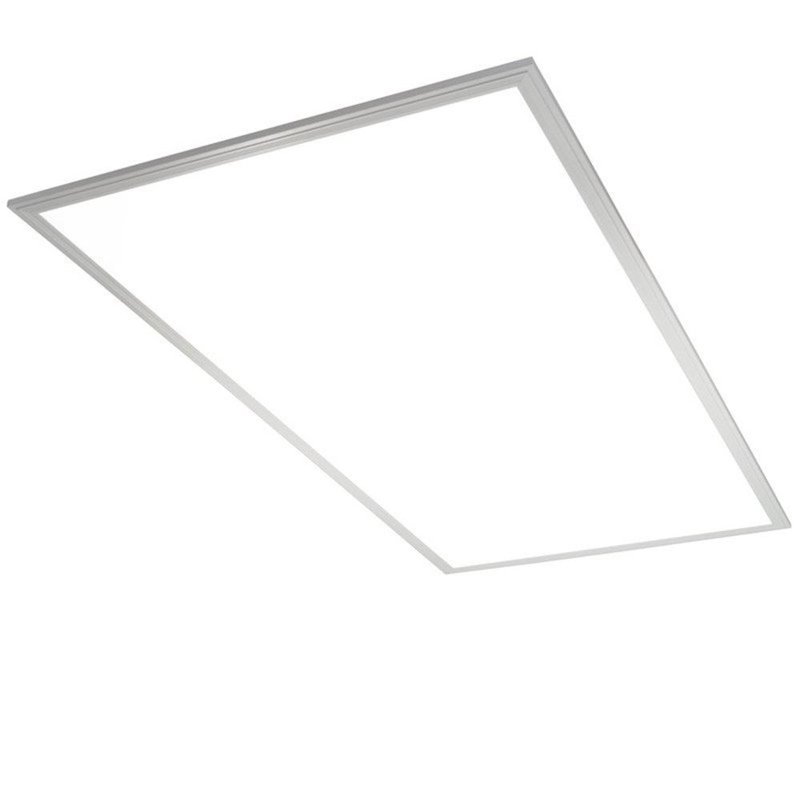

40W 2x2 2x4 LED Panel Lights

1. Ultra-thin design, simple and fashionable appearance. Suitable for new construction and remodel installations.

2. CRI > 80, the light similar with the sunshine.

3. Strong canopy and frame for easy and fast installation.

4. Suitable for day and damp locations.

5. Energy saving, high brightness, no mercury, no infrared, no ultraviolet, no electromagnetic interference, no thermal effect, no radiation, no stroboscopic phenomenon.

6. Comply with UL, DLC, SAA, TUV-GS, CE requirements.

7. Warranty: 5 years.

8. ODM and OEM are available.

Item	Quantity loaded by 20GP container	Quantity loaded by 20GP container	Quantity loaded by 20GP container
2 x 2 FT	1836	3672	4320
2 X 4 FT	904	1908	2280
1 x 4 FT	1672	3496	4182

40W 2x2 FT LED Panel Light
General Data
Rated voltage [V]:	175-265v
Frequency [Hz:]	50/60Hz
Dimmable:	no
Lamp wattage[W]:	40W
Lamp current[mA]:	1000mA
Power factor l:	>0.9

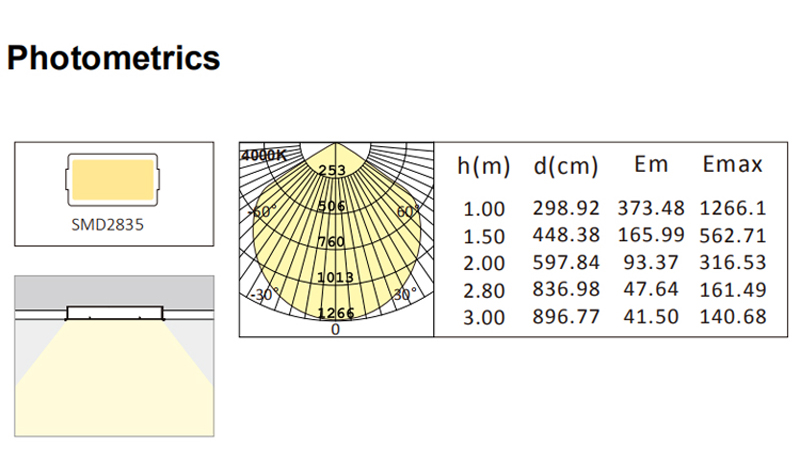

Light data
Correlated Color temperature [K]:	3000K-6000K
SDCM:	<6
Rated light output (base up, 25ºC, 100 hrs) [lm]:	4000lm
Color rendering, Rated value(Ra):	>80
Rated luminous efficacy [lm/W]:	>100
Lumen maintenance at end of service life	>90%
Beam angle:	120°
Lifetime (at 230V)
Lifetime(50% failure by a switching cycle 165’ on /15’ off at 25ºC)[h]:	30000H
Switching cycles up to 50% failure (60s on /180s off )[cycles]:	100000
Starting and Operation
Ignition time (25ºC, 198V)[s]:	<0.2S
Temperature range to reach 90% light output (base up)[ºC]:	40ºC-50ºC
Light output variation at + 10% line voltage variation [%]:	2%
Operating temperature range [ºC]:	.-25ºC-60ºC
Geometrical Data:
Lamp size:	595x595x8mm
Shell material:	Aluminum
Driver	40W
