Perfect combination of CREE high power LED and unique lens. A superior product on the market, providing outstanding uniform illumination with super long 2.5m light transfer distance, achieving above 80% evenness in big white plain fabric face luminaires.

INQUIRE+

DESCRIPTION
TEMPLATE
PACKING DETAILS
DOWNLOAD

Perimeter LED Edge Lighting for SEG Signage

Developed private mold new lens with unique secondary optics, 10 *25 double angle design, realizing super long distance lighting up to 2.5m, and light distribution is more uniform and brighter. Unique design, perfect combination of CREE LED and our special narrow beam Lens. Featured with outstanding uniform light, it is really good for SEG signage lightbox edge lighting, large format fabric displays backlighting, trade show tension fabric system SEG stands, event environmental graphic display, retail branding light box, etc.

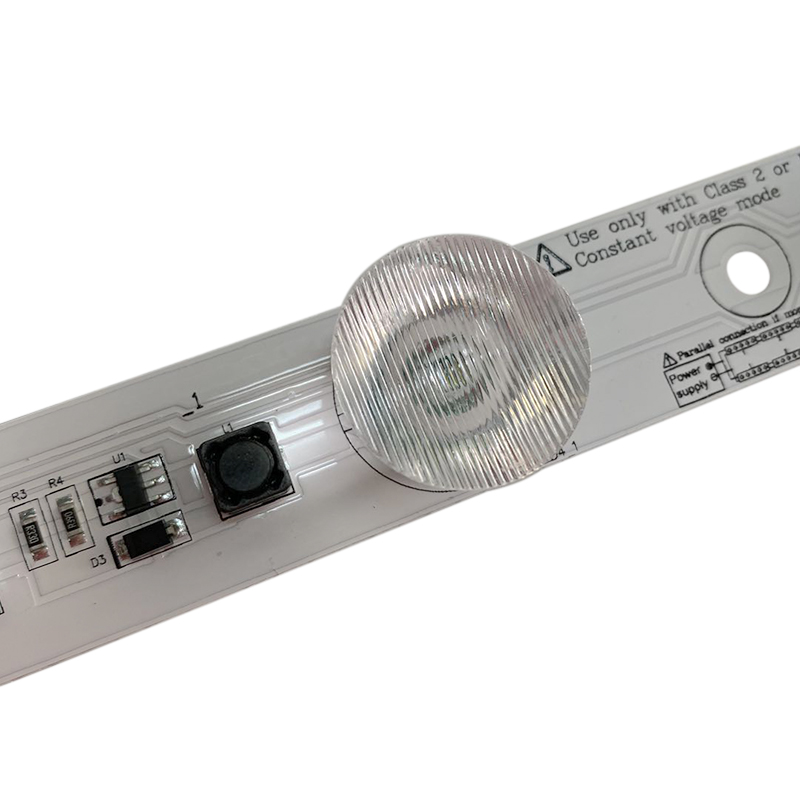

light box lighting.jpg

Specifications（25℃）

Item	Specifications	Unit

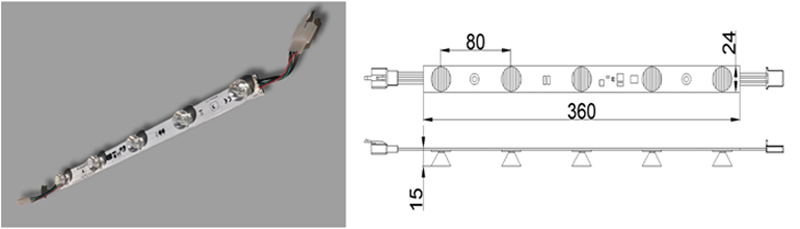

Product size	3602415 ︱ 3002415	mm
LED type	3535	-
LED QTY	5	PCS
LED spacing	80︱65	mm
Voltage	DC 24	V
Current	416±10%	mA
Power	10±10%	W
Luminous flux	1100±10%	LM
Lens Angle	10*25	Degree
CCT	6000-6500	K
CRI	≥70	-
Working temperature	-20~+45	℃
Storage temperature	-20~+60	℃
Level of protection	IP33	-

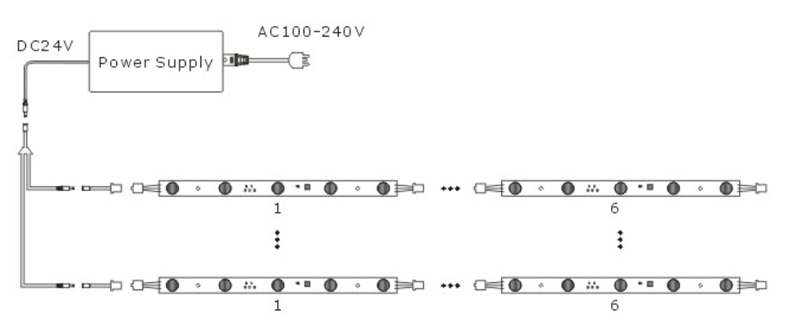

Cascade number	10	PCS

A superior edgelit LED bar on the market for 8CM double face SEG frame systems

Applications

- For edge lit illuminated lightbox and signs

- Recommended fabric light box thickness, single sided thickness 6-12cm and double sided thickness 8-20cm, duratrans light box with PET image can be thinner.

- Length is not limited, width can be up to 5 meters.
